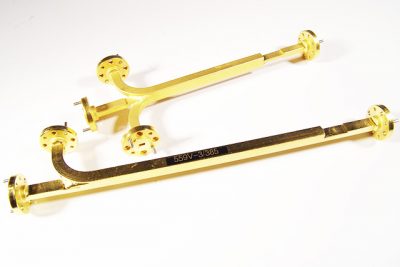

Model | Band | Frequency (GHz) | Insertion Loss(dB) | Directivity (dB) | Coupling (dB) | Coupling Accuracy (± dB) | Input/Output Port |
560K-3/594 | K-Band | 18-26.5 | 1 | 40 | 3 | 1.5 | WR-42 Waveguide, UG-595/U |
560K-6/595 | K-Band | 18-26.5 | 1 | 40 | 6 | 1.5 | WR-42 Waveguide, UG-595/U |
560K-10/595 | K-Band | 18-26.5 | 1 | 40 | 10 | 1.5 | WR-42 Waveguide, UG-595/U |
560K-20/595 | K-Band | 18-26.5 | 1 | 40 | 20 | 1.5 | WR-42 Waveguide, UG-595/U |
560K-30/595 | K-Band | 18-26.5 | 1 | 40 | 30 | 1.5 | WR-42 Waveguide, UG-595/U |
560K-40/596 | K-Band | 18-26.5 | 1 | 40 | 40 | 1.5 | WR-42 Waveguide, UG-595/U |
560A-3/596 | Ka-Band | 26.5-40 | 1 | 40 | 3 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560A-6/597 | Ka-Band | 26.5-40 | 1 | 40 | 6 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560A-10/598 | Ka-Band | 26.5-40 | 1 | 40 | 10 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560A-20/599 | Ka-Band | 26.5-40 | 1 | 40 | 20 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560A-30/599 | Ka-Band | 26.5-40 | 1 | 40 | 30 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560A-40/598 | Ka-Band | 26.5-40 | 1 | 40 | 40 | 1.5 | WR-28 Waveguide, UG-599/U Flange |
560B-3/381 | Q-Band | 33-50 | 1 | 40 | 3 | 1 | WR-22 Waveguide, UG-383 Flange |
560B-6/382 | Q-Band | 33-50 | 1 | 40 | 6 | 1 | WR-22 Waveguide, UG-383 Flange |
560B-10/383 | Q-Band | 33-50 | 1 | 40 | 10 | 1 | WR-22 Waveguide, UG-383 Flange |
560B-20/383 | Q-Bnad | 33-50 | 1 | 40 | 20 | 1 | WR-22 Waveguide, UG-383/U Flange |
560B-30/383 | Q-Band | 33-50 | 1 | 40 | 30 | 1 | WR-22 Waveguide, UG-383/U Flange |
560B-40/382 | Q-Band | 33-50 | 1 | 40 | 40 | 1 | WR-22 Waveguide, UG-383 Flange |
560E-3/387 | E-Band | 60-90 | 1 | 40 | 3 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-3/385 | E-Band | 60-90 | 1 | 40 | 3 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-6/386 | E-Band | 60-90 | 1 | 40 | 6 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-10/387 | E-Band | 60-90 | 1 | 40 | 10 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-20/387 | E-Band | 60-90 | 1 | 40 | 20 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-30/387 | E-Band | 60-90 | 1 | 40 | 30 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560E-40/388 | E-Band | 60-90 | 1 | 40 | 40 | 1.5 | WR-12 Waveguide, UG-387/U Flange |
560U-3/383 | U-Band | 40-60 | 1 | 40 | 3 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560U-6/384 | U-Band | 40-60 | 1 | 40 | 6 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560U-10/383 | U-Band | 40-60 | 1 | 40 | 10 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560U-20/383 | U-Band | 40-60 | 1 | 40 | 20 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560U-30/384 | U-Band | 40-60 | 1 | 40 | 30 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560U-40/385 | U-Band | 40-60 | 1 | 40 | 40 | 1.2 | WR-19 Waveguide, UG-383/U-M Flange |
560V-3/385 | V-Band | 50-70 | 1 | 40 | 3 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560V-6/383 | V-Band | 50-70 | 1 | 40 | 6 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560V-10/384 | V-Band | 50-70 | 1 | 40 | 10 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560V-20/385 | V-Band | 50-70 | 1 | 40 | 20 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560V-30/385 | V-Band | 50-70 | 1 | 40 | 30 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560V-40/386 | V-Band | 50-70 | 1 | 40 | 40 | 1.5 | WR-15 Waveguide, UG-385/U Flange |
560W-3/385 | W-Band | 75-110 | 1 | 40 | 3 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
560W-6/386 | W-Band | 75-110 | 1 | 40 | 6 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
560W-10/387 | W-Band | 75-110 | 1 | 40 | 10 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
560W-20/387 | W-Band | 75-110 | 1 | 40 | 20 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
560W-30/387 | W-Band | 75-110 | 1 | 40 | 30 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
560W-40/386 | W-Band | 75-110 | 1 | 40 | 40 | 1.5 | WR-10 Waveguide, UG-387/U-M Flange |
