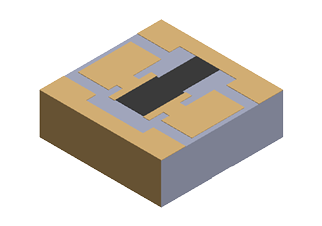

SemiGen SFAP-5db固定衰减器焊盘是一种采用半固态射频/微波技术制成的衰减器垫片。它具备精确的电阻膜和优质的金属化层，从而实现了出色的性能和一致性。这种焊盘采用了先进的薄膜技术，具有完整的侧封皮，无需额外的地脚线连接，大大简化了安装过程。其可焊性顶部接触设计使得RF输入/输出连接更为方便，非常适合标准的射频/微波组装技术。
SFAP-5db固定衰减器焊盘的性能参数包括：
Attenuation(衰减量)：±0.20 dB
Attenuation Flatness(衰减平坦度)：在DC到20GHz、20到30GHz、30到40GHz的频率范围内均为±0.20 dB
Return Loss(回波损耗)：在DC到14GHz的频率范围内最小为18.0 dB，在14到40GHz的频率范围内典型值为16.0 dB
其他相关型号：
| Part Number | Attenuation
(dB) | Attenuation Flatness' | ReturnLoss |
DCTolerance
dB | DC-20GHz
(dB | 20-30GHz
(dB) | 30-40GHz
(dB) | DC14GH
Min(dB) | 14-40GHz
Typ.(dB) |
| SFAP-0dB | 0 | +0.20 | +0.20 | +0.40 | +0.40 | 18.0 | 16.0 |
| SFAP-1dB | 1 | ±0.20 | ±0.20 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-2dB | 2 | ±0.20 | ±0.20 | ±0.40 | 10.40 | 18.0 | 16.0 |
| SFAP-3dB | 3 | ±0.20 | ±0.20 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-4dB | 4 | ±0.20 | ±0.20 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-5dB | 5 | ±0.20 | ±0.20 | +0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-6dB | 6 | ±0.20 | ±0.25 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-7dB | 7 | ±0.20 | ±0.25 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-8dB | 8 | ±0.20 | ±0.25 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-9dB | 9 | ±0.20 | ±0.25 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-10dB | 10 | ±0.20 | ±0.25 | 士0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-11dB | 11 | ±0.20 | ±0.30 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-12dB | 12 | ±0.20 | ±0.30 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-13dB | 13 | +0.20 | ±0.30 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-14dB | 14 | ±0.20 | ±0.30 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-15dB | 15 | ±0.20 | ±0.30 | ±0.40 | 10.40 | 18.0 | 16.0 |
| SFAP-16dB | 16 | ±0.20 | ±0.30 | ±0.40 | ±0.40 | 18.0 | 16.0 |
| SFAP-17dB | 17 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-18dB | 18 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-19dB | 19 | +0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-20dB | 20 | ±0.20 | ±0.40 | t0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-21dB | 21 | ±0.20 | ±0.40 | t0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-22dB | 22 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-23dB | 23 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-24dB | 24 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-25dB | 25 | +0.20 | ±0.40 | t0.60 | 10.60 | 18.0 | 16.0 |
| SFAP-26dB | 26 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-27dB | 27 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-28dB | 28 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-29dB | 29 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
| SFAP-30dB | 30 | ±0.20 | ±0.40 | ±0.60 | ±0.60 | 18.0 | 16.0 |
SemiGen是美国一家晶圆级射频器件实力派制造商，从晶圆到封装器件, 品类丰富，从航天级MIL-PRF 38534到军用MIL-PRF 19500、750和883，SemiGen致力于提供卓越的质量和可靠性。
