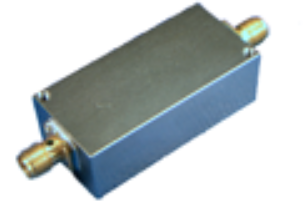

KR Electronics低通滤波器SMA
发布时间：2024-01-11 17:14:11 浏览：773
低通滤波器是种利用频率少于所选择频率响应的信号并衰减频率高过频率响应的信号的滤波器。低通滤波器作用于各个行业领域，例如电子电路、数据平稳、声学阻塞、图像模糊等。
SMA连接器应用于高至26.5GHz的频率范围射频微波应用。应用领域包括电信、数据网络、无线通讯和测试测量仪器等。SMA连接器具备频带宽、性能优质、高可靠性、使用寿命长的特点。
Part Number | Cutoff
Frequency | Attenuation
at Cutoff | Stopband
Frequency | Stopband
Attenuation | Case
Style | Notes/Special Features |
2321-SMA | 300 Hz | 3 | 1 KHz | 40 | SMA | Active Filter |
2484 | 20 KHz | 1.5 | 21 KHz | 20 | SMA |
|
3201-20-SMA | 20 KHz | 3 | 32 KHz | 52 | SMA |
|
3282-SMA | 45 KHz | 1.5 | 50 KHz | 30 | SMA | 50 Ohm |
2826 | 45 KHz | 1.5 | 50 KHz | 30 | SMA | 500 Ohm |
3479 | 50 KHz | 3 | 100 KHz | 36 | SMA | Low Impedance Source/High Impedance Load |
2928-SMA | 100 KHz | 1 | 140 KHz | 45 | SMA |
|
2827-130 | 130 KHz | 1.5 | 149 KHz | 30 | SMA |
|
2275-1.5 | 150 KHz | 3 | 240 KHz | 50 | SMA |
|
2827 | 350 KHz | 1.5 | 400 KHz | 30 | SMA |
|
3105-535 | 535 KHz | 3 | 560 KHz | 80 | SMA |
|
3271-SMA | 1 MHz | 0.5 | 1.4 MHz | 45 | SMA | Stopband to >6 GHz |
2391-1.75-75-SMA | 1.75 MHz | 0.25 | 2.42 MHz | 45 | SMA | 75 Ohm
Group Delay Equalized |
3151 | 7 MHz | 1 | 15 MHz | 50 | SMA |
|
2490 | 7 MHz | 1 | 12 MHz | 30 | SMA | Group Delay Equalized |
2832-SMA | 7.5 MHz | 3 | 10 MHz | 40 | SMA |
|
3400-SMA | 7.5 MHz | 3 | 10 MHz | 40 | SMA |
|
2969-SMA | 10 MHz | 1 | 13.125 MHz | 84 | SMA |
|
2884-SMA | 11 MHz | 3 | 12 MHz | 50 | SMA |
|
2378-50-SMA | 15 MHz | 0.2 | 22.275 MHz | 40 | SMA | 50 Ohm
Group Delay Equalized |
2297-7-SMA | 16 MHz | 0.5 | 22.4 MHz | 45 | SMA |
|
3020 | 20 MHz | 3 | 22.5 MHz | 25 | SMA |
|
2586-20 | 20 MHz | 0.5 | 40 MHz | 55 | SMA |
|
2937 | 20 MHz | 3 | 44.1 MHz | 45 | SMA |
|
3039 | 25.5 MHz | 1 | 35 MHz | 49 | SMA |
|
2933-SMA | 30 MHz | 3 | 36 MHz | 65 | SMA |
|
3018-2-SMA | 30 MHz | 1 | 37.5 MHz | 50 | SMA | Group Delay Equalized |
2586-30 | 30 MHz | 0.5 | 60 MHz | 55 | SMA |
|
3254-32-LP-SMA | 32 MHz | 1.5 | 50 MHz | 60 | SMA |
|
2489 | 33 MHz | 1 | 45 MHz | 30 | SMA | Group Delay Equalized |
2478 | 34 MHz | 0.25 | 46 MHz | 40 | SMA | Group Delay Equalized |
2454 | 37 MHz | 0.5 | 52.2 MHz | 60 | SMA | Group Delay Equalized
Sin(x)/x |
2586-40 | 40 MHz | 0.5 | 80 MHz | 55 | SMA |
|
2789 | 40 MHz | 1.5 | 52.5 MHz | 84 | SMA |
|
2805 | 45 MHz | 1 | 70 MHz | 30 | SMA |
|
2586-50 | 50 MHz | 0.5 | 100 MHz | 55 | SMA |
|
2515 | 50 MHz | 0.25 | 73.6 MHz | 60 | SMA | Group Delay Equzlized |
3380-SMA | 60 MHz | 3 | 67.5 MHz | 40 | SMA |
|
2806 | 85 MHz | 2 | 108 MHz | 30 | SMA |
|
2513 | 88 MHz | 1 | 132 MHz | 40 | SMA | Group Delay Equalized |
3065 | 88 MHz | 1 | 118 MHz | 40 | SMA |
|
2692 | 91 MHz | 3 | 100 MHz | 20 | SMA |
|
3119 | 100 MHz | 3 | 109.9 MHz | 20 | SMA |
|
3234-SMA | 105 MHz | 0.5 | 155 MHz | 60 | SMA | Group Delay Equalized |
2886 | 110 MHz | 1 | 180 MHz | 40 | SMA |
|
2923-SMA | 110 MHz | 2.5 | 117.5 MHz | 40 | SMA |
|
3405-SMA | 112 MHz | 1.5 | 118 MHz | 10 | SMA |
|
3230-SMA | 112.5 MHz | 2 | 125 MHz | 45 | SMA | Group Delay Equalized |
2750-SMA | 165 MHz | 0.75 | 225 MHz | 50 | SMA | Group Delay Equalized |
3258-SMA | 165 MHz | 3 | 175 MHz | 25 | SMA |
|
2635-SMA | 167 MHz | 1 | 226 MHz | 50 | SMA |
|
2812 | 174 MHz | 2 | 225 MHz | 50 | SMA |
|
3101 | 180 MHz | 3 | 200 MHz | 40 | SMA | Group Delay Equalized |
3070-SMA | 200 MHz | 3 | 250 MHz | 40 | SMA | Group Delay Equalized |
3253-201-LP-SMA | 201 MHz | 1.5 | 402 MHz | 50 | SMA |
|
2961-SMA | 300 MHz | 1 | 500 MHz | 40 | SMA | Group Delay Equalized |
3064 | 300 MHz | 1 | 600 MHz | 55 | SMA |
|
3188-SMA | 351.4 MHz | 3 | 390 MHz | 60 | SMA |
|
2433-400-SMA | 400 MHz | 3 | 522 MHz | 54 | SMA |
|
3216-SMA | 400 MHz | 1 | 450 MHz | 50 | SMA |
|
3007-SMA | 430 MHz | 0.5 | 549 MHz | 20 | SMA | Group Delay Equalized
Sin(x)/x |
2914 | 450 MHz | 3 | 500 MHz | 35 | SMA |
|
2968-SMA | 475 MHz | 0.5 | 800 MHz | 55 | SMA | Group Delay Equalized
Sin(x)/x |
2433-500-SMA | 500 MHz | 3 | 652.5 MHz | 54 | SMA |
|
3153-SMA | 615 MHz | 3 | 800 MHz | 60 | SMA |
|
3255-805-LP-SMA | 805 MHz | 1.5 | 1600 MHz | 50 | SMA |
|
3008-SMA | 1250 MHz | 1.25 | 1600 MHz | 40 | SMA |
|
3293-SMA | 1700 MHz | 3 | 2500 MHz | 40 | SMA |
|
3481-SMA | 2100 MHz | 3 | 2900 MHz | 40 | SMA |
|
3281-SMA | 2750 MHz | 1 | 3900 MHz | 40 | SMA |
|
