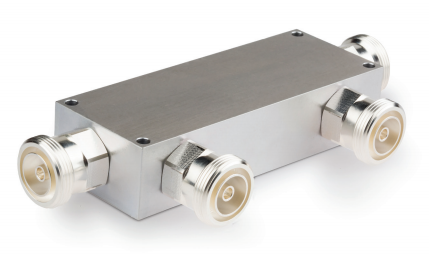

MegaPhase射频定向耦合器
发布时间：2023-03-28 16:45:00 浏览：1274
MegaPhase射频定向耦合器具备多方面耦合电路值和频带宽度以满足更多技术应用和系统需求。射频定向耦合器设计用作最良性的实验环境，能够满足军工用L波段和空间系统的严格管理。MegaPhase射频定向耦合器能够在众多封装和连接器系列中完成耦合电路值、全局性和插入损耗的严苛公差。
窄带双向耦合器：
倍频程和多倍频程频率段至12GHz
6、10、20和30dB耦合电路
具备N型、SMA型和2.92mm连接器
大功率、低插入损耗
设计满足MIL-DTL-15370
适用的环境筛选
窄带定向耦合器：
宽带至26.5GHz
10、16、20dB耦合电路
25W功率解决
SMA和2.92mm连接器适用
设计满足MIL-DTL-15370环境标准
可进行选择
宽带定向耦合器：
多倍频程带至18GHz
T6、10、20和30dB耦合电路
50W功率解决
具备N型、SMA型和2.92mm连接器
设计满足MIL-DTL-15370
适用的环境筛选
MegaPhase毫米波元器件成立于1998年，是美国著名的微波电缆供应商。MegaPhase公司设计和生产高可靠性射频同轴线缆、连接器产品，MegaPhase毫米波线缆产品广泛应用服务于微波于微波于光电系统，尤其是测试、防务电子、卫星通信、宽带数据通信等。MegaPhase产品线频率可达到DC-110GHz.
深圳市立维创展科技授权代理销售MegaPhase产品，主要提供MegaPhase产品的稳相电缆和电缆组件，并提供售后支持服务，欢迎咨询。
详情了解MegaPhase微波电缆请点击：http://www.leadwaytk.com/brand/40.html
Narrow Band Dual Direction Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DDC-40N-.17G | Dual 40 dB | .1 to .25 | N-F | 40 | 1 | 20 | 0.55 | 1.25 | 1.35 | 5.00 x 2.00 x 1.25 750 745 740 |
DDC-40NS-.17G | Dual 40 dB | N/SMA-F |
DDC-40NB-.17G | Dual 40 dB | N/BNC-F |
Wide Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
DC27-10S-4G | 10 dB | 0.3 – 8.0 | SMA -F | 10, 20 | 1.2 | 15 | 1 | 1.5 | 1.5 | 6.00 x .73 x .50 |
DC27-20S-4G | 20 dB |
DC36-10S-9.2G | 10 dB | 0.5 – 18.5 | SMA -F | 10, 20 | 1.2 | 12 | 1.6 | 1.8 | 1.8 | 4.40 x .73 x .50 |
DC36-20S-9.2G | 20 dB |
DC9-10S -10G | 10 dB | 2.0-18.0 | SMA -F | 6, 10, 15 20, 30 dB | 1.2 | 12 10 (30 dB) | 1 | 1.8 | 1.8 | 2.25 x .73 x .50 |
DC9-15S-10G | 15 dB |
DC9-20S-10G | 20 dB |
DC9-30S-10G | 30 dB |
Narrow Band Directional Couplers
MegaPhase Model No. | Type | Frequency Range (GHz) | Connectors | Coupling (dB, Nom.) | Frequency Sensitivity (dB, Max.) | Directivity (dB, Min.) | Insertion Loss (dB, Max) | Main Line VSWR | Coupled Line VSWR | Size |
|
DC3-3N-.32 | 3 dB | .13-.520 | NF (C-5352-dB will be dual directional) | 3 to 40* (40 dB is 30 w/ internal pad) | 1 to 2 | 18 (3-7 dB) 20 (10+ dB) | 0.3 dB above theoretical coupling loss | 1.3 | 1.3 | 5.80 x 2.00 x 1.00 |
|
DC3-4N-.32 | 4 dB |
|
DC3-5N-.32 | 5 dB |
|
DC3-6N-.32 | 6 dB |
|
DC3-7N-.32 | 7 dB |
|
DC3-10N-.32 | 10 dB |
|
DC3-15N-.32 | 15 dB |
|
DC3-20N-.32 | 20 dB |
|
DC3-30N-.32 | 30 dB |
|
DC7-5N-1.5G | 5 dB | .38-2.7 | N-F | 5 to 30 dB | 1 | 20 | 0.7 | 1.35 | 1.35 | 6.46 x 1.21 x .72 343 312 283 |
|
DC7-6N-1.5G | 6 dB |
|
DC7-7N-1.5G | 7 dB |
|
DC7-10N-1.5G | 10 dB |
|
DC7-15N-1.5G | 15 dB |
|
DC7-20N-1.5G | 20 dB |
|
DC7-30N-1.5G | 30 dB |
|
DC2-XS-.75G* | 6, 10, 15, 20, 30 dB | 0.5 – 1.0 | SMA -F | 6, 10, 15, 20, 30 Db * | 1 | 20 dB (up to 4GHz) | 0.6 | 1.3 (up to 4GHz) | 1.3 (up to 4GHz) | 4.40 x .73 x .50 |
DC4-XS-1.25G* | 0.5 – 2.0 | 4.40 x .73 x .50 |
DC4-XS-1.7G* | 0.7 – 2.7 | 4.40 x .73 x .50 |
DC2-XS-1.5G* | 1.0 – 2.0 | 15 dB (up to 12GHz) | 1.5 (up to 12GHz) | 1.5 (up to 12GHz) | 3.50 x .73 x .50 |
DC4-XS-2.5G* | 1.0 – 4.0 | 3.50 x .73 x .50 |
DC2-XS-3G* | 2.0 – 4.0 | 2.25 x .73 x .50 |
DC2-XS-3.9G* | 2.6 – 5.2 | 12 dB (up to 18GHz) | 1.7 (up to 18GHz) | 1.7 (up to 18GHz) | 2.25 x .73 x .50 |
DC2-XS-6G* | 4.0 – 8.0 | 1.10 x .65 x .50 |
DC2-XS-9.5G* | 7.0 – 12.4 | 1.10 x .65 x .50 |
DC2-XS-15G* | 12.0– 18.0 | 1.10 x .65 x .50 |
