SA系列超紧凑、薄型DC-DC转换器PICO

发布时间：2022-11-09 16:58:16 浏览：784

PICO的SA系列单输出、高压DC-DC转换器选用超小型封装模块。SA系列转换器具备高效率和优异的负载调节功能，能在-25°C至+70°C的温度范围内工作，也不会出现电气调额和/或散热。

特征

超小型仪器机箱

带核心抽头的单输出

隔离、非稳压、3W额定功率

1500Vdc输入/输出隔离

输入过压关闭

高效率：至87%

严苛的负载调整

低输出纹波

高输入/输出隔离

内部温度保护

宽操作温度：-25°C至+70°C

应用

超声波发生器

雪崩光电二极管

电子束偏移

光谱学

光电探测器

电容充电

静电镜片

压电式器件

深圳市立维创展科技是PICO公司的分销商。提供进口PICO电源模块、军用电源模块、高压电源模块、小型变压器、MIL-PRF-21038/27规格变压器、脉冲变压器、400 MHz电力变压器、MIL-STD-1553接口变压器、音频变压器、功率电感、微型功率电感、EMI电感、薄DC-直流电源模块、军用DC-DC电源模块、砖块DC-DC电源模块、高压DC-DC、AC-DC电源模块、开关直流电源模块、隔离电源模块、航空电源模块等功能电源模块和功率转换器。原装产品进口，质量保证，欢迎咨询。

详情了解PICO电源模块请点击：http://www.leadwaytk.com/brand/15.html

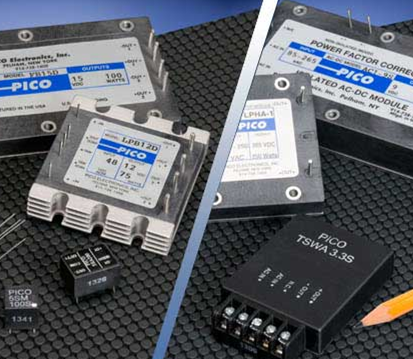

PICO (2).png

SERIES 5SA Standard Models (25°C ambient, Vi, nom and Pout, Max.)
PICO PART #		INPUT VOLTAGE (Vdc)			OUTPUT VOLTAGE		INPUT VOLTAGE		MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
Plug-In	Surface Mount	NOM	RANGE	O.V. SHDN	NOM (Vdc)	TOL (%)	NO LOAD (mA)	FULL LOAD (mA)	MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
5SA100	5SA100SM	5	4.5...5.5	6	100	+/-3	65	695	30.0	3	5	86	0.8
5SA150	5SA150SM	5	4.5...5.5	6	150	+/-3	66	705	20.0	3	6	85	1.0
5SA200	5SA200SM	5	4.5...5.5	6	200	+/-3	65	690	15.0	3	8	87	1.3
5SA250	5SA250SM	5	4.5...5.5	6	250	+/-3	67	690	12.0	3	7	87	1.6
5SA300	5SA300SM	5	4.5...5.5	6	300	+/-3	66	700	10.0	3	6	85	1.3
5SA350	5SA350SM	5	4.5...5.5	6	350	+/-3	67	700	8.6	3	6	85	1.4
5SA400	5SA400SM	5	4.5...5.5	6	400	+/-3	56	710	7.5	3	5	84	2.0
5SA450	5SA450SM	5	4.5...5.5	6	450	+/-3	57	705	6.7	3	5	85	2.0
5SA500	5SA500SM	5	4.5...5.5	6	500	+/-3	59	705	6.0	3	2	85	1.0
5SA600	5SA600SM	5	4.5...5.5	6	600	+/-3	70	700	5.0	3	6	85	1.5
5SA700	5SA700SM	5	4.5...5.5	6	700	+/-3	76	725	4.3	3	5	82	1.4
5SA800	5SA800SM	5	4.5...5.5	6	800	+/-3	83	720	3.8	3	3	83	1.0
5SA900	5SA900SM	5	4.5...5.5	6	900	+/-3	90	735	3.3	3	5	81	1.0
5SA1000	5SA1000SM	5	4.5...5.5	6	1000	+/-3	95	740	3.0	3	5	81	0.5

SERIES 12SA Standard Models (25°C ambient, Vi, nom and Pout, Max.)
PICO PART #		INPUT VOLTAGE (Vdc)			OUTPUT VOLTAGE		INPUT CURRENT		MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
Plug-In	Surface Mount	NOM TD>	RANGE	O.V. SHDN	NOM (Vdc)	TOL (%)	NO LOAD (mA)	FULL LOAD (mA)	MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
12SA100	12SA100SM	12	10...14	14.5	100	+/-3	41	290	30.0	3	3	86	1.0
12SA150	12SA150SM	12	10...14	14.5	150	+/-3	41	290	20.0	3	6	86	1.0
12SA200	12SA200SM	12	10...14	14.5	200	+/-3	44	292	15.0	3	6	86	1.3
12SA250	12SA250SM	12	10...14	14.5	250	+/-3	43	302	12.0	3	4.5	83	1.2
12SA300	12SA300SM	12	10...14	14.5	300	+/-3	42	298	10.0	3	3.5	84	0.75
12SA350	12SA350SM	12	10...14	14.5	350	+/-3	42	300	8.6	3	3.5	83	1.4
12SA400	12SA400SM	12	10...14	14.5	400	+/-3	39	295	7.5	3	5	85	1.5
12SA450	12SA450SM	12	10...14	14.5	450	+/-3	39	295	6.7	3	6	85	2.0
12SA500	12SA500SM	12	10...14	14.5	500	+/-3	40	298	6.0	3	4	84	1.0
12SA600	12SA600SM	12	10...14	14.5	600	+/-3	40	300	5.0	3	2	83	1.0
12SA700	12SA700SM	12	10...14	14.5	700	+/-3	45	305	4.3	3	4	82	1.4
12SA800	12SA800SM	12	10...14	14.5	800	+/-3	46	308	3.8	3	6	81	1.0
12SA900	12SA900SM	12	10...14	14.5	900	+/-3	46	310	3.3	3	7	81	1.0
12SA1000	12SA1000SM	12	10...14	14.5	1000	+/-3	47	310	3.0	3	8	81	0.75

SERIES 24SA Standard Models (25°C ambient, Vi, nom and Pout, Max.)
PICO PART #		INPUT VOLTAGE (Vdc)			OUTPUT VOLTAGE		INPUT CURRENT		MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
Plug-In	Surface Mount	NOM	RANGE	O.V. SHDN	NOM (Vdc)	TOL (%)	NO LOAD (mA)	FULL LOAD (mA)	MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
24SA100	24SA100SM	24	21...27	28	100	+/-3	19	145	30.0	3	6	86	1.0
24SA150	24SA150SM	24	21...27	28	150	+/-3	20	145	20.0	3	6	86	1.0
24SA200	24SA200SM	24	21...27	28	200	+/-3	20	150	15.0	3	6	83	1.3
24SA250	24SA250SM	24	21...27	28	250	+/-3	21	153	12.0	3	5	82	1.2
24SA300	24SA300SM	24	21...27	28	300	+/-3	21	155	10.0	3	5	81	1.0
24SA350	24SA350SM	24	21...27	28	350	+/-3	22	156	8.6	3	4	80	1.4
24SA400	24SA400SM	24	21...27	28	400	+/-3	18	147	7.5	3	5	85	1.5
24SA450	24SA450SM	24	21...27	28	450	+/-3	19	148	6.7	3	6	84	2.0
24SA500	24SA500SM	24	21...27	28	500	+/-3	20	148	6.0	3	4	84	1.0
24SA600	24SA600SM	24	21...27	28	600	+/-3	20	148	5.0	3	7	84	1.2
24SA700	24SA700SM	24	21...27	28	700	+/-3	23	149	4.3	3	4	84	1.4
24SA800	24SA800SM	24	21...27	28	800	+/-3	23	150	3.8	3	6	83	1.0
24SA900	24SA900SM	24	21...27	28	900	+/-3	24	150	3.3	3	7	83	1.0
24SA1000	24SA1000SM	24	21...27	28	1000	+/-3	24	150	3.0	3	6	83	0.75

SERIES 28SA Standard Models (25°C ambient, Vi, nom and Pout, Max.)
PICO PART		INPUT VOLTAGE (Vdc)			OUTPUT VOLTAGE		INPUT CURRENT		MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
Plug-In	Surface Mount	NOM	RANGE	O.V. SHDN	NOM (Vdc)	TOL (%)	NO LOAD (mA)	FULL LOAD (mA)	MAX. OUTPUT CURRENT (mA)	MAX. OUTPUT POWER (W)	LOAD EFFECT (%)	EFF. (%)	OUTPUT RIPPLE (%)
28SA100	28SA100SM	28	25...30	31	100	+/-3	20	129	30.0	3	6	83	1.0
28SA150	28SA150SM	28	25...30	31	150	+/-3	20	129	20.0	3	6	83	1.0
28SA200	28SA200SM	28	25...30	31	200	+/-3	21	132	15.0	3	6	81	1.3
28SA250	28SA250SM	28	25...30	31	250	+/-3	21	133	12.0	3	5	81	1.2
28SA300	28SA300SM	28	25...30	31	300	+/-3	22	133	10.0	3	6	81	1.0
28SA350	28SA350SM	28	25...30	31	350	+/-3	22	134	8.6	3	4	80	1.4
28SA400	28SA400SM	28	25...30	31	400	+/-3	18	127	7.5	3	5	84	1.5
28SA450	28SA450SM	28	25...30	31	450	+/-3	19	128	6.7	3	6	84	2.0
28SA500	28SA500SM	28	25...30	31	500	+/-3	20	129	6.0	3	4	83	1.0
28SA600	28SA600SM	28	25...30	31	600	+/-3	20	130	5.0	3	5	82	1.5
28SA700	28SA700SM	28	25...30	31	700	+/-3	23	127	4.3	3	4	84	1.4
28SA800	28SA800SM	28	25...30	31	800	+/-3	23	127	3.8	3	6	84	1.0
28SA900	28SA900SM	28	25...30	31	900	+/-3	24	128	3.3	3	7	84	1.0
28SA1000	28SA1000SM	28	25...30	31	1000	+/-3	24	128	3.0	3	6	84	1.0
