MIS 电容器SemiGen
发布时间：2022-10-14 16:35:19 浏览：1066

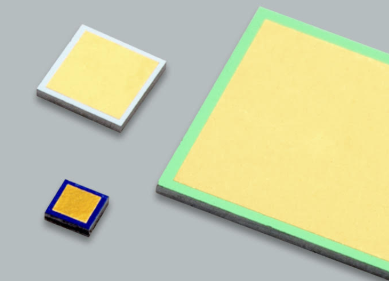

SemiGen的8000和8100系列MIS电容器有很多种电容范围和尺寸。它是由初级原材料制作而成，由氧化物/氮化层组合而成，提供低介电损耗和高隔离电压。半根射频微波芯片电容器产品仅以芯片形式提供。
特征：
极高的Q
超低温系数
低耗散因数
长期稳定性
正面和背面金触点
薄至3mil以限制电感
应用：
适用于需要直流电保护、RF旁路或放大器电路、振荡器、控制开关、滤波器和乘法器的固定调谐的应用。
SemiGen是美国一家晶圆级射频器件实力派制造商，从晶圆到封装器件, 品类丰富，从航天级MIL-PRF 38534到军用MIL-PRF 19500、750和883，SemiGen致力于提供卓越的质量和可靠性。
深圳市立维创展科技有限公司，授权代理于中国区域销售SemiGen产品，并提供售前和售后技术支持服务。
详情了解SemiGen请点击：http://www.leadwaytk.com/brand/64.html
8100 Series Capacitors, Working Voltage >100V
Capacitance Range | Chip Size (±.002”)
Dim A x Dim B x Dim C | Type |
0.1 pf thru 1.9 pf | .010" x .010" x .005" | 810R1 thru 811R9 |
2.0 pf thru 9.9 pf | .015" x .015" x .005" | 812R0 thru 819R9 |
10.0 pf thru 29.0 pf | .020" x .020" x.006" | 8110R thru 8129R |
30.0 pf thru 49.0 pf | .030" x .030" x.006" | 8130R thru 8149R |
50.0 pf thru 99.0 pf | .040" x .040" x .008" | 8150R thru 8199R |
100 pf thru 199 pf | .050" x .050" x .008" | 81100 thru 81199 |
200 pf thru 399 pf | .070" x .070" x.008" | 81200 thru 81399 |
8000 Series Capacitors, Working Voltage >50V
Capacitance Range | Chip Size (±.002”)
Dim A x Dim B x Dim C | Type |
2.0 pf thru 9.9 pf | .010" x .010" x .005" | 802R0 thru 809R9 |
10.0 pf thru 29.0 pf | .015" x .015" x .005" | 8010R thru 8029R |
30.0 pf thru 49.0 pf | .020" x .020" x.006" | 8030R thru 8049R |
50.0 pf thru 99.0 pf | .030" x .030" x.006" | 8050R thru 8099R |
100 pf thru 199 pf | .040" x .040" x .008" | 80100 thru 80199 |
200 pf thru 399 pf | .050" x .050" x .008" | 80200 thru 80399 |
400 pf thru 600 pf | .070" x .070" x.008" | 80400 thru 80600 |
Tolerance Table
Tolerance + |
A = .05 pF | G = 2% |
B = .1 pF | J = 5% |
C = .25 pF | K = 10% |
D = .5 pF | M = 20% |
F = 1% |
|
Standard Tolerance is +10% |
Maximum Ratings |
Parameters | Rating |
Operating Temperature | -55° C to +150° C |
Storage Temperature | -65° C to +200° C |
Temperature Coefficient | 190 ppm/°C Max
40 ppm/°C typical |
Voltage Breakdown | Varies according |
