TOREX降压型DC/DC转换器
发布时间：2022-04-26 17:01:40 浏览：851
近年来，移动终端、智能穿戴设备和物联网设备等电池驱动的电子产品已经随处可见。为了提升产品的设计灵活性，满足确保配置新功能所需空间的微型化规定要求，要求将这些产品上携带的模块的功能损耗降至极限，为了实现电池的微型化，提高电池的使用期限。

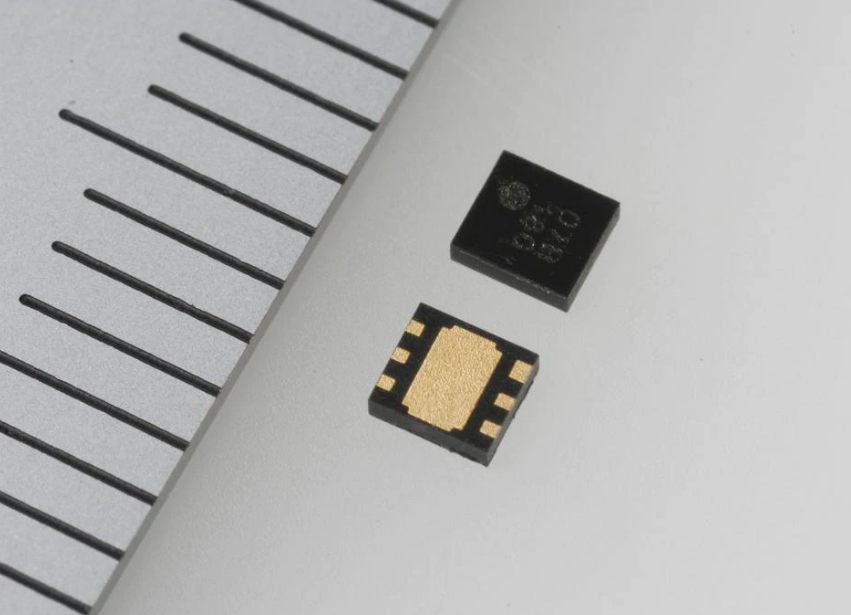

TOREX降压型DC/DC转换器选用超低功耗电源电路和PFM控制。它是具备输出电压开关功能的降压同步整流DC/DC变换器。选用PFM控制方法可以明显提升轻载下的效率。通过向VSET引脚输入外部信号，可以在两个值之间转换输出电压。TOREX降压型DC/DC转换器的输出电压转换功能可以为MCU的工作模式选择最好的输出电压，有利于减少整个设备的功能损耗。
深圳市立维创展科技有限公司，优势分销TOREX电源器件，大量现货库存，欢迎合作。
详情了解TOREX请点击：http://www.leadwaytk.com/brand/62.html
产品系列 | VIN(MIN)
(V) | VIN(MAX)
(V) | VOUT(MIN)
(V) | VOUT(MAX)
(V) | IOUTorIIN
(mA) | FB/VOUT电压精度 | 振荡频率(kHz) | 消耗电流(μA) | 温度范围(℃) |
XC9276 | 1.8 | 6 | 0.5 | 3.6 | 150 | ±2.0% | - | 200nA＠VOUT=1.8V | -40～+85 |
XC9281 | 2.5 | 5.5 | 0.7 | 3.6 | 600 | ±1.5% | 4000
6000 | 590 | -40～+105 |
XC9282 | 2.5 | 5.5 | 0.7 | 3.6 | 600 | ±1.5% | 4000
6000 | 11 | -40～+105 |
XC6365 | 2.2 | 10 | 1.5 | 6 | 1000 | ±2.5% | 180
300
500 | 15 | -30～＋80 |
XC6366 | 2.2 | 10 | 1.5 | 6 | 1000 | ±2.5% | 180
300
500 | 15 | -30～＋80 |
XC9213 | 4 | 25 | 1.5 | 15 | 5000 | ±1.5% | 300 | 450 | -40～＋85 |
XC9220 | 2.8 | 16 | 1.2 | 15 | 3000 | ±1.5% | 300
500
1000 | 25 | -40～＋85 |
XC9221 | 2.8 | 16 | 1.2 | 15 | 3000 | ±1.5% | 300
500
1000 | 25 | -40～＋85 |
XC9223 | 2.5 | 6 | 0.9 | 6 | 1000 | ±2.0% | 1000
2000 | 30 | -40～＋85 |
XC9224 | 2.5 | 6 | 0.9 | 6 | 1000 | ±2.0% | 1000
2000 | 30 | -40～＋85 |
XC9235 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9236 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9237 | 1.8 | 6 | 0.8 | 4 | 600 | ±2.0% | 1200
3000 | 15 | -40～＋85 |
XC9242 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40～＋85 |
XC9243 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40～＋85 |
XC9244 | 2.3 | 6 | 0.8 | 4 | 400 | ±2.0% | 1200 | 18 | -40～＋85 |
XC9245 | 2.3 | 6 | 0.8 | 4 | 400 | ±2.0% | 1200 | 18 | -40～＋85 |
XC9252 | 3 | 30 | 0.8 | 30 | 10000 | ±2.0% | ADJ | 30 | -40～＋105 |
XC9265 | 2 | 6 | 1 | 4 | 200 | ±2.0% |
| 0.5 | -40～＋85 |
XC9270 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200 | -40～＋105 |
XC9271 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200 | -40～＋105 |
XC9274 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XCM526 | 4 | 16 | 1.2 | 15 | 3000 | ±1.5% | 500
1000 |
| -40～＋85 |
XC9246 | 4.5 | 16 | 1.2 | 5.6 | 1000 | ±2.0% | 1200 | 150 | -40～＋85 |
XC9247 | 4.5 | 16 | 1.2 | 5.6 | 1000 | ±2.0% | 1200 | 150 | -40～＋85 |
XC9250 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200,250 | -40～＋105 |
XC9251 | 7 | 30 | 1.2 | 12 | 2000 | ±2.0% | 300
500 | 200,250 | -40～＋105 |
XC9272 | 2 | 6 | 0.6 | 0.95 | 50 |
|
| 0.5 | -40～＋85 |
XD9242 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40 ～ + 85 |
XD9243 | 2.7 | 6 | 0.9 | 6 | 2000 | ±2.0% | 1200
2400 | 41 | -40 ～ + 85 |
XC9248 | 4.5 | 18 | 1 | 12 | 2200 | ±1.5% | 500 | 760 | -40～＋105 |
XC9257 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 250,400 | -40～＋105 |
XC9258 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 15,40 | -40～＋105 |
XC9259 | 2.5 | 5.5 | 0.8 | 3.6 | 1000 | ±2.0% | 1200
6000 | 15,40 | -40～＋105 |
XC9260 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 250,400 | -40～＋105 |
XC9261 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 15,25 | -40～＋105 |
XC9262 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 15,25 | -40～＋105 |
XC9263 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 500
1200
2200 | 11.5, 12.5, 13.5 | -40～＋105 |
XC9264 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 500
1200
2200 | 11.5, 12.5, 13.5 | -40～＋105 |
XC9266 | 2.7 | 5.5 | 0.8 | 3.6 | 6000 | ±1.0% | 1200
3000 | 40 | -40～＋105 |
XC9267 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 1200
2200 | 180 | -40～+105 |
XC9268 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 1200
2200 | 12.5 | -40～+105 |
XC9273 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XC9275 | 2.7 | 5.5 | 0.8 | 3.6 | 3000 |
| 1200
3000 | 40 | -40～＋105 |
XC9280 | 4.5 | 18 | 1.8 | 7 | 3000 | ±1.5% | 1200 | 80 | -40～+105 |
XD9260 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 25 | -40 ～ + 105 |
XD9261 | 2.7 | 5.5 | 0.8 | 3.6 | 1500 | ±2.0% | 1200
3000 | 25 | -40 ～ + 105 |
XD9263 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9264 | 3 | 18 | 1 | 15 | 500 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9267 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 2200 | 290 | -40～+105 |
XD9268 | 3 | 36 | 1 | 25 | 600 | ±1.5% | 2200 | 13.5 | -40～+105 |
XD9707 | 3 | 36 | 1.8 | 12 | 600 | ±1.5% | 2200 | 290 | -40～+125 |
XD9708 | 3 | 36 | 1.8 | 12 | 600 | ±1.5% | 2200 | 13.5 | -40～+125 |
