CINCON转换器DIP / SMD 3-75W

发布时间：2022-03-14 16:40:05     浏览：880

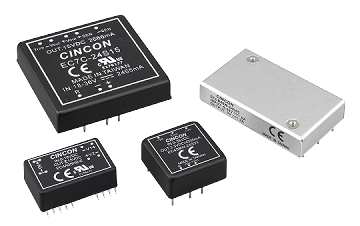

CINCON的DIP DC-DC转换器具有各种封装形式，例如3W至15W的DIP24或SMD24封装形式，10W至30W的1”x1”封装形式，10W至75W的2”x1”封装形式，2”x1.6”和2”x2”封装形式从15W到40W。CINCON具备超过29年的研制工作经验，致力于铁路交通、工业生产、ITE、5G电信、医疗设备和家庭应用领域。

对于工业生产应用领域，CINCON所有的DIPDC-DC转换器都可用于工业生产应用领域。

对于铁路交通应用领域，有适用EN50155标准的DIP转换器，例如DIP248W和10W、2”x1”封装形式20W和40W。此外，CINCON提供2”x1”、20W、18:1超宽输入范围DC-DC转换器，包含应用系统的大量分布式电压。

DIP转换器，DC到DC电源制造商

CINCON设计和制造具备行业标准和引脚排列的3W-75WDC/DCDIP转换器。特点是效率高、工作温度高、输入范围宽。CINCON还为各种应用领域提供非隔离和高隔离DC/DC转换器。深圳市立维创展科技是CINCON电源模块的代理经销商，提供CINCON电源模块的DC-DC转换器、AC-DC电源、LED电源等，产品原装进口，质量保障，极具价格优势，欢迎咨询

详情了解CINCON电源请点击：http://www.leadwaytk.com/article/2177.html


18:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

4:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AW

3W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW

6W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW

8W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW

10W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC4BW

10W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)

NEW

EC7AW

10W

18~74V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)


EC6AW-110

10W

43~160V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)


EC8AW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)


EC3SBW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC5BW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)


EC5C

15W

18~72V, 9~36V

12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)


EC1SC

20W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

EN55022 Class A

2.00×1.60×0.45(DIP)


EC4SBW

20W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC7BW-110

20W

43~160V

12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)


EC7BW

20W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

NRND

EC3SCW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)


EC5SBW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

NRND

EC6E

30W

18~72V, 9~36V

+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V

500Vdc Isolation

2.56x3.00x0.83(DIP)


EC9BW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


ECLB40W

40W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)


ECLB40W-110

40W

43~160V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)


ECLB60W

60W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

NEW

ECLB75W

75W

18~75V, 9~36V

12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

2:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3A

3W

18~36V, 36~72V, 4.5~6V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB

3W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRND

EC3BB

7.5W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)


EC3A-E

3W

18~36V, 36~72V, 4.5~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A

7.5W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB

10W

18~36V, 36~75V, 4.7~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE

10W

18~36V, 36~72V, 9~18V

12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)


EC4BU

10W

18~36V, 36~75V, 4.7~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)


EC7A

10W

18~36V, 36~75V, 9~18V

12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB

15W

18~36V, 36~75V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRND

EC3C

15W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation

2.00x2.00x0.40(DIP)


EC5BU

15W

18~36V, 36~75V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)


EC5BE

15W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)


EC7B

20W

18~36V, 36~75V, 9~18V

1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


EC6C

30W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)


EC7C

40W

18~36V, 36~75V, 9~18V

12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

High Isolation 6KV


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC4AW-H6

6W

18~72VDC, 9~36VDC

12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AE

3W

12V, 24V, 28V, 48V, 5V

12V, 15V, 5V, ±12V, ±15V


1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
