常见宽输入电压DC-DC电源模块产品品牌汇总
发布时间：2021-08-24 17:03:03 浏览：1976
在实际工业系统中，总会由于系统外部电源电压波动，导致供给系统内电压的变化，比如高铁系统设备，系统中用电环境复杂，设备众多，不可预测的工况复杂，会导致某些关键设备电压随之变化；再比如，我们发现，无线水下机器人设备，在水下工况下，由于不同功能模块直接切换，导致传感系统部分供电收到影响。基于上述市场特征，一些前沿电源模块厂家，率先推出宽输入DC-DC电源模块产品。
GAIA品牌DC-DC电源模块产品
6W MGDDI-06 系列，输入12-160V ，28*19.8*8.2mm体积
MODEL | INPUT | # of Outputs | Vout | Iout | Options |
MGDDI-06-R-C | 12-160VDC | Dual | 2 x 5V | 2 x 600mA | - |
MGDDI-06-R-E | 12-160VDC | Dual | 2 x 12V | 2 x 250mA | - |
MGDDI-06-R-F | 12-160VDC | Dual | 2 x 15V | 2 x 200mA | - |
MGDDI-06-R-I | 12-160VDC | Dual | 2 x 24V | 2 x 125mA | - |
|
|
|
|
|
|
20W MGDDI-20 系列，输入12-160V ，40.1*26.1*12.7mm体积
MODEL | INPUT RANGE | # of Outputs | Vout | Iout |
MGDDI-20-R-C | 12 -160VDC | Dual (isolated) | 2 x 5V | 2.0A |
MGDDI-20-R-E | 12 -160VDC | Dual (isolated) | 2 x 12V | 825mA |
MGDDI-20-R-F | 12 -160VDC | Dual (isolated) | 2 x 15V | 650mA |
MGDDI-20-R-I | 12 -160VDC | Dual (isolated) | 2 x 24V | 425mA |
60W MGDDI-60系列，输入12-160V, 72.7*47.9*12.5mm体积
MODEL | INPUT RANGE | # of Outputs | Vout | Iout |
MGDDI-60-R-C | 12 -160VDC | Dual (isolated) | 2 x 5V | 5.0A |
MGDDI-60-R-E | 12 -160VDC | Dual (isolated) | 2 x 12V | 2.5A |
MGDDI-60-R-F | 12 -160VDC | Dual (isolated) | 2 x 15V | 2.0A |
MGDDI-60-R-I | 12 -160VDC | Dual (isolated) | 2 x 24V | 1.25A |

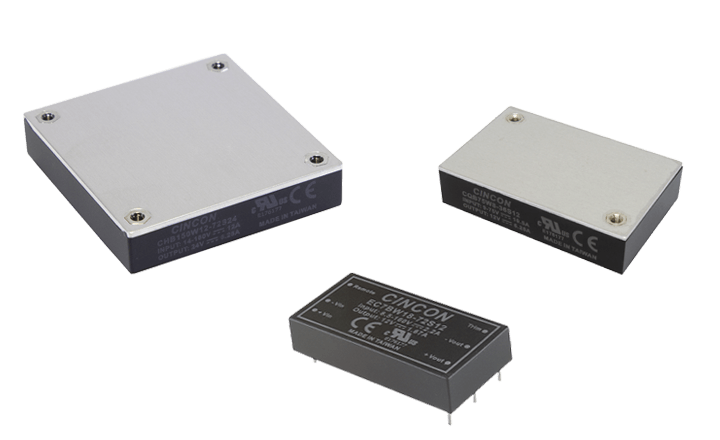

CINCON品牌DC-DC电源模块产品
20W 输入电压8.5~160V
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
EC7BW18 | 20W | 8.5~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | 3KVac Isolation | 2.00x1.00x0.40(DIP) |
20W 输入电压10~160V
Model | Power | Input Voltage | Output Voltage | Dimensions (Inch) |
EC7BW18-ECRT/EDRT | 20W | 10~160V | 12V, 15V, 5V, ±12V, ±15V, ±24V | 4.45x2.33x0.85 |
200W 输入电压14~160V
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W12 | 50W | 14~160V | 12V, 24V, 48V, 5V | 3KVdc Isolation | 2.28×1.45x0.50 1/4砖 |
CQB50W12-72SXX-CMFC(D) | 50W | 14~160V | 12V, 24V, 48V, 5V | Screw Terminal | 4.60x2.40x1.26 |
CHB150W12 | 150W | 14~160V | 12V, 15V, 24V, 48V, 5V | 3KVac Isolation | 2.28×2.40x0.50 半砖 |
CHB200W12 | 200W | 14~160V | 12V, 15V, 24V, 48V | 3KVac Isolation | 2.28×2.40x0.50 半砖 |
150W 输入电压9~75V
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CQB50W8 | 50W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation | 2.28×1.45x0.50 1/4砖 |
CQB50W8-36SXX-CMFC(D) | 50W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal | 4.60x2.40x1.46 |
CQB75W8 | 75W | 9~75V | 12V, 15V, 24V, 28V, 48V | 3KVac Isolation | 2.28×1.45x0.50 1/4砖 |
CQB75W8-36SXX-CMFC(D) | 75W | 9.5~75V | 12V, 15V, 24V, 28V, 48V | Screw Terminal | 4.60x2.40x1.46 |
CHB150W8 | 150W | 9~75V | 12V, 15V, 24V, 28V, 48V | 1.5KVDC Isolation | 2.28×2.40x0.50 半砖 |
深圳市立维创展科技有限公司，授权代理PICO、CINCON、CYNTEC品牌电源模块产品，满足系统级、板级和芯片级电源需求，快速交付，专业品质。
更多电源模块产品信息，请咨询我们的销售工程师。
详情了解CINCON可点击：http://www.leadwaytk.com/article/2177.html
或联系我们的销售工程师：0755-83642657 QQ: 2295048674
