VICOR电源ENMods-PFC前端
发布时间：2021-05-07 17:01:36 浏览：2272

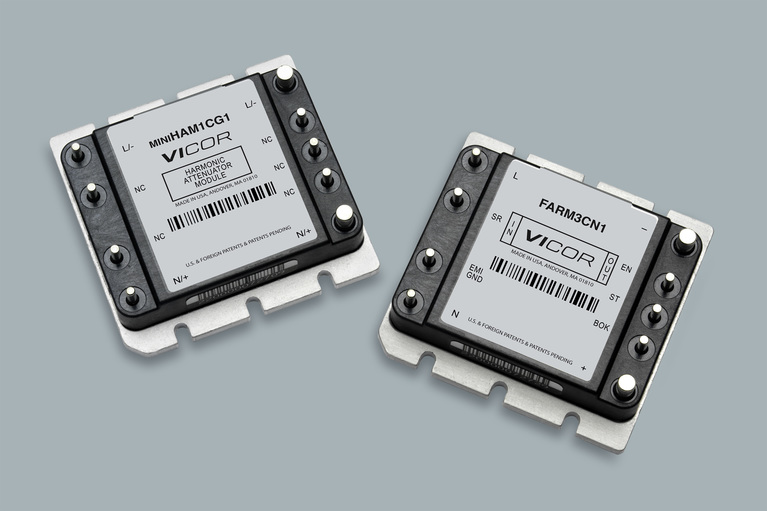

VICOR电源模块ENMOD系统是集无源功率因数校正和自动调节功能模块于一体式的交流前端解决方案。VICOR电源模块的ENMOD操作系统选用滤波和保持电容相互结合的形式，充分满足EN61000-3-2谐波电流，EN55022B级辐射，EN61000-4-5浪涌抗扰度，EN61000-4-11线干扰和EN61000-3-3浪涌电流需求。与有源PFC解决方案有所不同，MiniHAM不产生EMI，大大简化和减少了操作系统噪声和滤波需求。
特征和优势
自动调节115/230Vac输入；
谐波电流衰减系数满足EN61000-3-2；
EMI滤波满足EN55022，B级 （建议带滤波器）；
瞬态抗扰度满足EN61000-4-5。
深圳市立维创展科技是VICOR电源模块的代理经销商，主要提供DC-DC、AC-DC电源模块，隔离、非隔离电源模块转换器等，立维创展致力为客户提供高品质、高质量、价格公正的微波元器件产品，欢迎咨询.
详情了解VICOR电源模块请点击：http://www.leadwaytk.com/brand/18.html
或联系我们的销售工程师：0755-83642657 QQ: 2295048674
Part Number | 产品等级 | 引脚形式 | 符合RoHS | 基板 |
EN1TS1 | –40°C to +100°C | Short ModuMate | No | Slotted |
EN1TN2 | –40°C to +100°C | Long ModuMate | No | Threaded |
EN1TN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1TG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
EN1T23 | –40°C to +100°C | Long | No | Through hole |
EN1T22 | –40°C to +100°C | Long | No | Threaded |
EN1T21 | –40°C to +100°C | Long | No | Slotted |
EN1T11 | –40°C to +100°C | Short | No | Slotted |
EN1HN3 | –40°C to +100°C | Long ModuMate | No | Through hole |
EN1HN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1HG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
EN1H21 | –40°C to +100°C | Long | No | Threaded |
EN1CS1 | –20°C to +100°C | Short ModuMate | No | Slotted |
EN1CN3 | –20°C to +100°C | Long ModuMate | No | Through hole |
EN1CN2 | –20°C to +100°C | Long ModuMate | No | Threaded |
EN1CN1 | –20°C to +100°C | Long ModuMate | No | Slotted |
EN1CG3 | –20°C to +100°C | Long RoHS | Yes | Through hole |
EN1CG2 | –20°C to +100°C | Long RoHS | Yes | Threaded |
EN1CG1 | –20°C to +100°C | Long RoHS | Yes | Slotted |
EN1CF2 | –20°C to +100°C | Short RoHS | Yes | Threaded |
EN1C23 | –20°C to +100°C | Long | No | Through hole |
EN1C22 | –20°C to +100°C | Long | No | Threaded |
EN1C21 | –20°C to +100°C | Long | No | Slotted |
EN1C13 | –20°C to +100°C | Short | No | Through hole |
EN1C12 | –20°C to +100°C | Short | No | Threaded |
EN1C11 | –20°C to +100°C | Short | No | Slotted |
