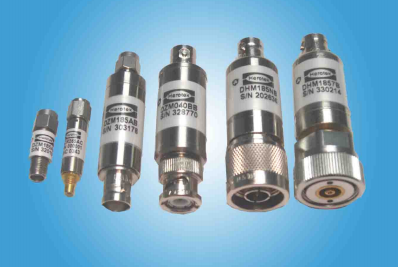

HEROTEK零偏置肖特基二极管检波器100 KHz至50 GHz
发布时间：2020-10-26 16:06:45 浏览：2779
肖特基二极管是由金属-半导体结构成的半导体二极管，具有正向电压低、开关速度快的特点。与类似应用中的点接触二极管相比，HEROTEK零偏置肖特基二极管具有更宽的动态范围、更高的热稳定性和更精确的平方律特性。HEROTEK零偏置肖特基二极管检波器不仅可用于精密测试设备、发射机、电源、信号监测和导弹制导系统，还可用作微波功率探测器。
零偏肖特基二极管探测器的一个成熟应用是毫米波和亚毫米波功率检测，在这种应用中可以有效地检测和混合从微波到太赫兹的电磁辐射。
HEROTEK零偏置肖特基二极管探测器的特性
没有偏差
匹配输入以实现出色的驻波比
频率响应非常平坦
非常高的灵敏度
HEROTEK零偏肖特基二极管探测器的应用
精密测试设备
变送器监控
电源和信号监控
雷达或导弹制导系统
实验室测试
深圳市立维创展科技有限公司，授权代理销售HEROTEK产品，产品包括检波器、放大器、限幅器、PIN开关、信号发生器等，HEROTEK产品满足出色的性能，高可靠性和快速交付，欢迎咨询。
详情了解HEROTEK产品请点击：http://www.leadwaytk.com/brand/47.html
或联系我们的销售工程师：0755-83050846 QQ: 3312069749
MODEL 1, 2 | FREQUENCY RANGE | MAXIMUM VSWR | MAXIMUM FLATNESS (± dB) | LOW LEVEL SENSITIVITY (mV / mW) | CONNECTOR | SIZE (INCHES) | OUTLINE |
INPUT | OUTPUT | LENGTH | DIA |
DZR124AA | 10 MHz – 12.4 GHz | 1.25:1 | 0.3 | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR124AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZR185AA | 10 MHz – 18.5 GHz | 1.25:1 | 0.5 | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR185AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZR265AA | 10 MHz – 26.5 GHz | 1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz) | 0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZR265AC | SMA (M) | SMC (M) | 1.47 | 0.32 | AC2 |
DZM020AA | 100 KHz - 2.0 GHz | 1.3:1 | 0.1 (per 100 KHz) 0.3 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM020BB | BNC (M) | BNC (F) | 2.48 | 0.68 | BB3 |
DZM040AA | 100 KHZ - 4.0 GHz | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM040BB | BNC (M) | BNC (F) | 2.48 | 0.68 | BB3 |
DZM124AA | 10 MHz – 12.4 GHz | 1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz) | 0.2 (per octave) 0.5 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM124AB | SMA (M) | BNC (F) | 2.50 | 0.56 | AB3 |
DZM124NB | Type N (M) | BNC (F) | 2.46 | 0.75 | NB3 |
DZM185AA | 10 MHz – 18.5 GHz | 1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz) | (per octave to 8 GHz) (for 10 MHz to 8 GHz) 0.5 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM185AB | SMA (M) | BNC (F) | 2.50 | 0.56 | AB13 |
DZM185AB2 | SMA (M) | BNC (F) | 1.89 | 0.39 | AB23 |
DZM185AC | SMA (M) | SMC (M) | 1.20 | 0.32 | AC1 |
DZM185NB | Type N (M) | BNC (F) | 2.46 | 0.75 | NB3 |
DZM1857B | APC-7 | BNC (F) | 2.59 | 0.75 | 7B3 |
MODEL 1, 2 | FREQUENCY RANGE | MAXIMUM VSWR | MAXIMUM FLATNESS (± dB) | LOW LEVEL SENSITIVITY (mV / mW) | CONNECTOR | SIIZE (INCHES) | OUTLINE |
INPUT | OUTPUT | LENGTH | DIA |
DZM265AA | 10 MHz-26.5 GHz | 1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz) | 0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall) | 0.5 | SMA (M) | SMA (F) | 1.05 | 0.32 | A |
DZM265AB | SMA (M) | BNC (F) | 1.89 | 0.39 | AB23 |
DZM265AC | SMA (M) | SMC (M) | 1.20 | 0.32 | AC1 |
DZM2653B | APC3.5 (M) | BNC (F) | 1.89 | 0.39 | 3B3 |
DZM2653C | APC3.5 (M) | SMC (M) | 1. 70 | 0.38 | 3C3 |
DZR400KA | 10 MHz – 40 GHz | 1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz) | 0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz) | 0.4 | K* (M) (2.9mm) | SMA (F) | 1.30 | 0.32 | C1 |
DZR400KB | K* (M) (2.9mm) | BNC (F) | 1.89 | 0.39 | KB3 |
DZR400KC | K* (M) (2.9mm) | SMC (M) | 1.35 | 0.32 | KC3 |
DZR50024A | 10 MHz – 50 GHz | 1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz) | 0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz) | 0.5 | 2.4mm (M) | SMA (F) | 1.32 | 0.32 | 24A3 |
DZR50024B | 2.4mm (M) | BNC (F) | 1.91 | 0.39 | 24B3 |
DZR50024C | 2.4mm (M) | SMC (M) | 1.36 | 0.32 | 24C3 |
DZ1018 | 1 GHz – 18.0 GHz | 8.0:1 (Typical) | 1.0 (Typical) | 1.8 | SMA (M) | SMA (F) | 1.16 | 0.32 | B |
DZ1026 | 1 GHz – 26.0 GHz | 8.0:1 (Typical) | 1.5 (Typical) | 1.6 | SMA (M) | SMA (F) | 1.16 | 0.32 | B |
