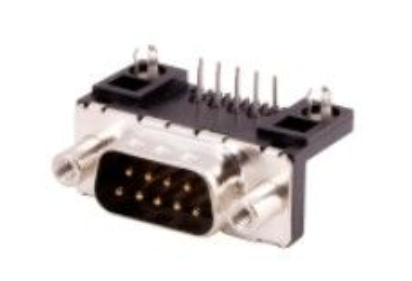

D-Sub经济型系列板装连接器AMPHENOL

发布时间：2023-07-26 16:46:02 浏览：1183

AMPHENOL ICC的D-Subminiature(D-Sub)连接器选用行业标准，适用于能够使用经久耐用且安全可靠的连接器应用。这些通过检验的D-Sub经济型系列板装连接器是最受欢迎输入/输出连接器之一，能够满足电信网络、数据信息、生活消费、工业生产、国防军事和医疗服务行业中广泛应用需求。AMPHENOL ICC提供D-Sub经济型系列板装连接器，能够满足所有的设计需求并符合低要求应用针对安全可靠连接器不断增长的需求。

特征

设计适用于低要求应用

D型支架设计

满足DIN41652和MIL-C-24308规格标准

冲压和成型接插件

插拔次数超过50次

提供有直向和直角接插件

配备满足欧盟和美国设计需求的直角版本

优势

稳固安全可靠、价格实惠的连接器

兼容极化需求

能够和其它设备进行交换和组配

降低成本解决方案

适用于数字机顶盒、智能电表和控制模块等应用

各种PCB组装选择

可适用于10.4/2.54mm和8.08/2.84mm的尺寸/间距选择

深圳市立维创展科技代理经销AMPHENOL公司各个领域产品系列，在AMPHENOL，AMPHENOL相信在开展业务的过程中做出可持续的选择可以为股东创造短期和长期价值。AMPHENOL的每一项业务都致力于不断改进其设计，采购，制造和交付产品的方式，努力满足或超越客户对整个价值链中产品管理的期望。AMPHENOL 的业务将安全和环境保护作为首要任务，并根据ISO 14001和OHSAS 18001等公认标准管理这些计划。但是，认证和法律合规性还不够。AMPHENOL不仅仅遵守法规就能创造长期价值。

详情了解AMPHENOL可点击：http://www.leadwaytk.com/article/1321.html

零件号	产品详情
LD09P13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09P33E4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD09S33E4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Socket Right Angle, Solder US standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD25P24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 25 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD25S24A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 25 way Socket Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P13A4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P13A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder Europe standard, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P24A4GX00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Straight, Solder, 50 cycles, Harpoons + Threaded Insert UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
LD15P33E4GV00LF	D-Subminiature Economy Range, Input Output Connectors, Signal 15 way Pin Right Angle, Solder US standard, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
