PULSAR 90°混合耦合器/分配器2:1 至 4:1 带宽
发布时间：2023-05-24 16:53:44 浏览：1009
PULSAR 90°混合分频器的频率范围为5至600MHz，频带宽度为2:1至4:1。大部分装置的最高插入损耗为0.5dB。PULSAR90°混合耦合器/分配器设计主要用于最高1w的额定功率，负载VSWR为1.2:1或效果更好。主要用于50Ω工作环境。

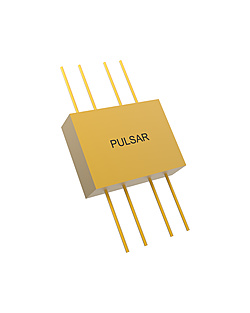

PULSAR主要以三种不占用空间的封装形式提供该产品组合。连接器线条412标准配置SMA母连接器。OutlineC是种表面贴装封装形式，主要用于PCB面积有限的手持式应用。Outline301是封闭的，主要用于极端环境。
PULSAR微波公司成立于1987年，PULSAR主要为世界商业客户提供性价比高微波产品，目前，PULSAR标准产品工作频率可高达到85GHz,并能够提供产品定制服务。PULSAR已经获得ISO-9001认证、美国ITAR认证，所有产品均符合RoHS标准。
深圳市立维创展科技授权代理销售PULSAR微波产品，并提供售后支持服务，欢迎咨询。
详情了解PULSAR放大器请点击：http://www.leadwaytk.com/brand/39.html
Bandwidth | Frequency Range
(MHz) | Insertion
Loss
(dB)
max. | Isolation
(dB)
min. | Amplitude
Balance
(dB)
max. | Phase
Balance
(deg)
max. | VSWR
max. | Package
Type | P/N |
Min | Max |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | Pin | Q3-01-301 |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | SMA | Q3-01-412 |
3:1 | 5 | 15 | 0.6 | 25 | 1.0 | 2° | 1.30:1 | Surface | Q3-01-C |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-01-301 |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-01-412 |
2:1 | 10 | 20 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-01-C |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | Pin | Q3-02-301 |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | SMA | Q3-02-412 |
3:1 | 10 | 30 | 0.6 | 23 | 1.0 | 2° | 1.30:1 | Surface | Q3-02-C |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-02-301 |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-02-412 |
2:1 | 15 | 30 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-02-C |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-03-301 |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-03-412 |
2:1 | 20 | 40 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-03-C |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | Pin | Q3-03-301 |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | SMA | Q3-03-412 |
3:1 | 20 | 60 | 0.6 | 23 | 1.0 | 3° | 1.30:1 | Surface | Q3-03-C |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-04-301 |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-04-412 |
2:1 | 30 | 60 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-04-C |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Pin | Q2-05-301 |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | SMA | Q2-05-412 |
2:1 | 40 | 80 | 0.5 | 25 | 0.6 | 2° | 1.20:1 | Surface | Q2-05-C |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | Pin | Q2-06-301 |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | SMA | Q2-06-412 |
2:1 | 50 | 100 | 0.5 | 23 | 0.6 | 2° | 1.20:1 | Surface | Q2-06-C |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | Pin | Q3-04-301 |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | SMA | Q3-04-412 |
3:1 | 40 | 120 | 0.6 | 20 | 1.2 | 3° | 1.30:1 | Surface | Q3-04-C |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | Pin | Q2-07-301 |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | SMA | Q2-07-412 |
2:1 | 60 | 120 | 0.5 | 23 | 0.6 | 2° | 1.30:1 | Surface | Q2-07-C |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Pin | Q2-08-301 |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | SMA | Q2-08-412 |
2:1 | 70 | 140 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Surface | Q2-08-C |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Pin | Q2-09-301 |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | SMA | Q2-09-412 |
2:1 | 80 | 160 | 0.5 | 22 | 0.6 | 2° | 1.30:1 | Surface | Q2-09-C |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | Pin | Q2-10-301 |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | SMA | Q2-10-412 |
2:1 | 90 | 180 | 0.5 | 20 | 0.6 | 2° | 1.30:1 | Surface | Q2-10-C |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | Pin | Q2-11-301 |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | SMA | Q2-11-412 |
2:1 | 100 | 200 | 0.5 | 20 | 0.8 | 3° | 1.40:1 | Surface | Q2-11-C |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | Pin | Q3-05-301 |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | SMA | Q3-05-412 |
3:1 | 80 | 240 | 0.6 | 20 | 1.2 | 4° | 1.30:1 | Surface | Q3-05-C |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | Pin | Q2-12-301 |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | SMA | Q2-12-412 |
2:1 | 150 | 300 | 0.6 | 20 | 0.8 | 3° | 1.40:1 | Surface | Q2-12-C |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | Pin | Q3-06-301 |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | SMA | Q3-06-412 |
3.5:1 | 95 | 335 | 0.7 | 18 | 1.8 | 4° | 1.40:1 | Surface | Q3-06-C |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | Pin | Q2-13-301 |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | SMA | Q2-13-412 |
2:1 | 200 | 400 | 0.7 | 18 | 0.8 | 3° | 1.40:1 | Surface | Q2-13-C |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | Pin | Q2-14-301 |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | SMA | Q2-14-412 |
2:1 | 300 | 600 | 0.8 | 18 | 1.0 | 5° | 1.50:1 | Surface | Q2-14-C |
