2 路、3 路、4 路、6 路和 8 路功率分配器MegaPhase
发布时间：2023-03-07 16:55:55 浏览：695

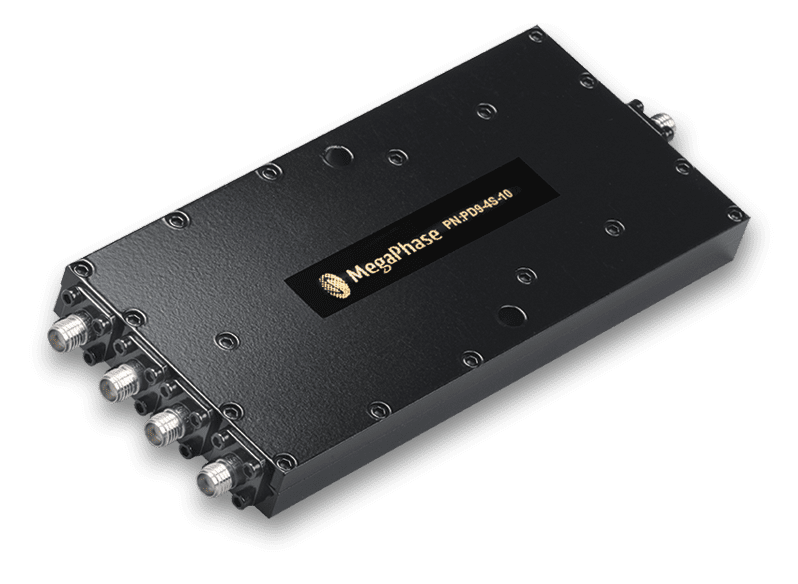

MegaPhase利用其2路、3路、4路、6路和8路功率分配器配备，为低功率和高功率数据技术应用具备低插入损耗处理方案。MegaPhase采用集总元件或带状线电源技术，标准及产品定制具备高端口到端口隔离和严苛的相位容差及其最好VSWR。
SMA连接器，具备3.5mm、2.92mm和2.4mm连接器
0.5–40GHz、倍频程和多倍频程带宽
低插入损耗和波幅稳定
满足MIL-DTL-23971
具备工作环境选择
MegaPhase毫米波元器件成立于1998年，是美国著名的微波电缆供应商。MegaPhase公司设计和生产高可靠性射频同轴线缆、连接器产品，MegaPhase毫米波线缆产品广泛应用服务于微波于微波于光电系统，尤其是测试、防务电子、卫星通信、宽带数据通信等。MegaPhase产品线频率可达到DC-110GHz.
深圳市立维创展科技授权代理销售MegaPhase产品，主要提供MegaPhase产品的稳相电缆和电缆组件，并提供售后支持服务，欢迎咨询。
详情了解MegaPhase微波电缆请点击：http://www.leadwaytk.com/brand/40.html
2 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD12-2N-3.25 | 2way | .5 -6GHz | N-F | 17 | 1.3 | 4 | 0.4 | 1.6 | 1.35 | 30 | 10 | 3.25x2.46x.75 |
PD12-2S-3.25G | 2way |
| SMA-F |
| 1.3 |
| 0.4 |
|
|
|
| 3.25x2.46x.75 |
PD16-2S-4.25G | 2way | .5-8GHz | SMA-F | 16 | 0.8 | 6 | 0.9 | 1.5 | 1.5 | 20 | 5 | 4.75x1.00x.38 |
PD36-2S-9.2G | 2way | .5-18GHz | SMA-F | 14 | 1.9 | 10 | 0.9 | 1.8 | 1.8 | 20 | 5 | 4.75x1.00x.38 |
PD9-2S-10G | 2way | 2-18GHz | SMA-F | 15 | 1 | 5 | 0.5 | 1.6 | 1.6 | 10 | 1 | 2.25x1.00x.38 |
PD4-2S-11G | 2way | 4-18GHz | SMA-F | 18 | 0.6 | 4 | 0.5 | 1.6 | 1.4 | 10 | 1 | 1.00x1.00x.38 |
3 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-3S-10G | 3way | 2-18GHz | SMA-F | 15 | 1.3 | 5 | 1 | 2 | 1.8 | 10 | 1 | 4.46x2.46x.38 |
4 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD16-2S-4.25 | 4way | .5-8GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |
PD36-4S-9.2G | 4way | .5-18GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |
PD9-4S-10G | 4way | 2-18GHz | SMA-F | 16 | 1.6 | 6 | 0.8 | 1.8 | 1.5 | 30 | 10 | 4.0x2.5x.38 |
PD4-4S-11G | 4way | 4-18GHz | SMA-F | 18 | 1.2 | 10 | 0.8 | 1.8 | 1.6 | 30 | 10 | 1.98x1.46x.38 |
6 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-6S-10G | 6way | 2-18GHz | SMA-F | 15 | 1.9 | 12 | 1 | 2 | 1.5 | 25 | 7 | 6.00x4.00x.38 |
8 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-8S-10G | 8way | 2-18GHz | SMA-F | 16 | 2.4 | 10 | 1 | 1.9 | 1.5 | 25 | 7 | 5.75x4.46x.38 |
