API SAW Oscillators贴片电阻
发布时间：2023-01-04 16:36:41 浏览：570

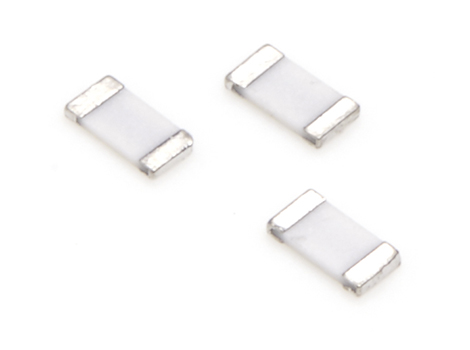

API SAW Oscillators提供适用范围广的Powerfilm ™片式电阻器。这些表面贴装元器件通常情况下适用于混合衰减器和威尔金森功率分配器。API SAW Oscillators片式电阻器的数值从5到300Ω不等，具有多种尺寸和表层处理可以选择。可以根据需求提供其他的设计、数值和选项。
API Tech为全世界高可靠性行业提供SAW振荡器。API Tech选用超低相噪声表滤波器，其相位噪声性能极低。API的SAW产品可提供频率范围为100MHz至4000MHz，特别适合航空航天应用领域。API Tech提供稳定频率、电压控制和锁相振荡器。
深圳市立维创展科技有限公司，专注API SAW Oscillators超低相噪SAW晶振产品代理销售，最快2-4周交付。
详情了解API SAW Oscillators请点击：http://www.leadwaytk.com/brand/60.html
Model | Power
(Watts) | Frequency
(GHz) | Ceramic
Substrate | Resistor
Film | Wrap Options | Finish
Option | Width
(Inches) | Length
(Inches) | Height
(Inches) |
26TPC20-40 | 1 | 26 | BeO | Thick | X, W, S | G, N, T, H | 0.02 | 0.04 | 0.01 |
3PPC250-250B | 60 | 3 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.06 |
ANC100-200A | 20 | 4 | AlN | Thin | X, W, S | N, T, H | 0.1 | 0.2 | 0.04 |
ANC200-200 | 30 | 4 | AlN | Thin | X, S | N, T, H | 0.2 | 0.2 | 0.04 |
ANC250-250-40 | 40 | 2.5 | AlN | Thin | X, W, S | N, T, H | 0.25 | 0.25 | 0.04 |
ANC250-375 | 150 | 3 | AlN | Thin | X | N, T, H | 0.25 | 0.375 | 0.04 |
ANC350-225 | 100 | 2 | AlN | Thin | X | N, T, H | 0.35 | 0.225 | 0.04 |
ANC375-375 | 200 | 1 | AlN | Thin | X | N, T, H | 0.375 | 0.375 | 0.04 |
ANC50-100 | 10 | 2.5 | AlN | Thin | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
ANC50-50 | 5 | 4 | AlN | Thin | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
KAC100-200A | 20 | 3 | AlN | Thick | X, S | N, T, H | 0.1 | 0.2 | 0.04 |
KAC250-250A | 75 | 5 | AlN | Thick | X, S | N, T, H | 0.25 | 0.25 | 0.04 |
KAC250-375A | 100 | 3 | AlN | Thick | X, S | N, T, H | 0.25 | 0.375 | 0.04 |
KAC60-120A | 10 | 4 | AlN | Thick | X, S | N, T, H | 0.06 | 0.12 | 0.025 |
NPC20-40 | 3 | 18 | BeO | TaN | X, W, S | G, N, T, H | 0.02 | 0.04 | 0.01 |
NPC25-50 | 5 | 12.4 | BeO | TaN | X, W, S | G, N, T, H | 0.025 | 0.05 | 0.01 |
NPC50-100 | 25 | 4 | BeO | TaN | X, W, S | G, N, T, H | 0.05 | 0.1 | 0.01 |
NPC50-50 | 8 | 10 | BeO | TaN | X, W, S | G, N, T, H | 0.05 | 0.05 | 0.01 |
NPC75-150 | 50 | 4 | BeO | TaN | X, W, S | G, N, T, H | 0.075 | 0.15 | 0.01 |
PC50-50 | 5 | 4 | Alumina | Thick | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
PPC100-200A | 65 | 4 | BeO | Thin | X, W, S | N, T, H | 0.1 | 0.2 | 0.04 |
PPC250-250A | 125 | 1 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.04 |
PPC250-250BS | 80 | 1.5 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.06 |
PPC250-375A | 150 | 1 | BeO | Thin | X | N, T, H | 0.25 | 0.375 | 0.04 |
PPC375-375A | 250 | 1 | BeO | Thin | X | N, T, H | 0.375 | 0.375 | 0.04 |
PPC50-100A | 10 | 8 | BeO | Thin | X, S | N, T, H | 0.05 | 0.1 | 0.04 |
PPC50-100D | 10 | 6 | BeO | Thin | X, W, S | N, T, H | 0.05 | 0.1 | 0.025 |
