API SAW Oscillators法兰端接
发布时间：2022-12-08 16:39:32 浏览：593

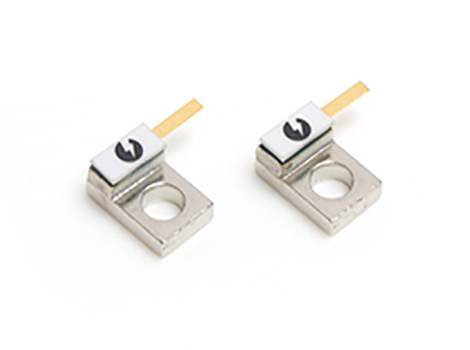

API SAW Oscillators提供各种Powerfilm法兰端选择。这些高功率电阻元件设计主要用于即便在最大功率情况下也能够在射频电路中高效地耗散额定功率。Powerfilm法兰端子一般主要用于隔离器，威尔金森电源模块分配器，或主要用于停止3db带或微带线混合电路。Powerfilm法兰端子指标值为50和100Ω，主要用于频率最高为7GHz的峰值功率和额定功率水平最高为1250瓦的额定功率。法兰尺寸范围从0.3“x0.2”到1.9“x1.0”。Powerfilm法兰端可以根据需求提高其它设计。
API Tech为全世界高可靠性行业提供SAW振荡器。API Tech选用超低相噪声表滤波器，其相位噪声性能极低。API的SAW产品可提供频率范围为100MHz至4000MHz，特别适合航空航天应用领域。API Tech提供稳定频率、电压控制和锁相振荡器。
深圳市立维创展科技有限公司，专注API SAW Oscillators超低相噪SAW晶振产品代理销售，最快2-4周交付。
详情了解API SAW Oscillators请点击：http://www.leadwaytk.com/brand/60.html
Model | Power
(Watts) | Frequency
(GHz) | Ceramic
Substrate | Resistor
Film | Width
(Inches) | Length
(Inches) | Height
(Inches) | Figure |
7ANT300-25 | 25 | 7 | AIN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT1250-250LP | 250 | 3 | AlN | Thin | 1.250 | 0.500 | 0.170 | 3 |
ANT1250-400 | 400 | 1 | AlN | Thin | 1.250 | 0.500 | 0.170 | 3 |
ANT1900-600 | 600 | 0.2 | AlN | Thin | 1.900 | 1.04 | 0.190 | 4 |
ANT300-10 | 10 | 4 | AlN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT300-25 | 25 | 4 | AlN | Thin | 0.300 | 0.200 | 0.105 | 1 |
ANT515-40 | 40 | 2.5 | AlN | Thin | 0.515 | 0.250 | 0.125 | 2 |
ANT515-80 | 80 | 1 | AlN | Thin | 0.515 | 0.250 | 0.125 | 2 |
ANT800-100 | 100 | 3 | AlN | Thin | 0.800 | 0.230 | 0.105 | 3 |
ANT800-150 | 150 | 4 | AlN | Thin | 0.800 | 0.230 | 0.105 | 3 |
ANT870-150 | 150 | 3 | AlN | Thin | 0.870 | 0.375 | 0.105 | 3 |
ANT870-150LP | 150 | 3 | AlN | Thin | 0.870 | 0.375 | 0.105 | 3 |
ANT975-200 | 200 | 1 | AlN | Thin | 0.975 | 0.375 | 0.170 | 3 |
ANT975-250 | 250 | 2.7 | AlN | Thin | 0.975 | 0.375 | 0.170 | 3 |
KAT1900-1000 | 1000 | 1.0 | AIN | Thick | 1.900 | 1.040 | 0.190 | 4 |
KAT1900-800 | 800 | 1 | AlN | Thick | 1.900 | 1.040 | 0.190 | 4 |
KAT300-25 | 25 | 2.3 | AlN | Thick | 0.300 | 0.200 | 0.105 | 1 |
KAT800-100 | 100 | 3.0 | AIN | Thick | 0.800 | 0.230 | 0.105 | 3 |
KAT800-125 | 125 | 3 | AlN | Thick | 0.800 | 0.230 | 0.105 | 3 |
KAT870-150 | 150 | 2.7 | AlN | Thick | 0.870 | 0.375 | 0.105 | 3 |
KAT975-100 | 100 | 3.0 | AIN | Thick | 0.975 | 0.250 | 0.105 | 3 |
PPT1250-400 | 400 | 0.4 | BeO | Thin | 1.250 | 0.500 | 0.170 | 3 |
PPT1250-500 | 500 | 1.5 | BeO | Thin | 1.250 | 0.500 | 0.190 | 3 |
PPT1250-600 | 600 | 0.4 | BeO | Thin | 1.250 | 0.500 | 0.170 | 3 |
PPT1900-800 | 800 | 0.4 | BeO | Thin | 1.900 | 1.040 | 0.190 | 4 |
PPT300-10-3 | 10 | 2 | BeO | Thin | 0.300 | 0.200 | 0.105 | 1 |
PPT300-50 | 50 | 2 | BeO | Thin | 0.300 | 0.200 | 0.105 | 1 |
PPT515-20-3 | 20 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-30 | 30 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-30-4 | 30 | 6 | BeO | Thin | 0.515 | 0.250 | 0.105 | 2 |
PPT515-75 | 75 | 7 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT515-80 | 80 | 2 | BeO | Thin | 0.515 | 0.250 | 0.125 | 2 |
PPT800-100A | 100 | 2 | BeO | Thin | 0.800 | 0.230 | 0.105 | 3 |
PPT800-40-3 | 40 | 4 | BeO | Thin | 0.800 | 0.230 | 0.105 | 3 |
PPT870-150-3 | 150 | 1 | BeO | Thin | 0.870 | 0.375 | 0.105 | 3 |
PPT870-250-3 | 250 | 1 | BeO | Thin | 0.870 | 0.375 | 0.105 | 3 |
PPT975-200LP | 200 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-250-3 | 250 | 1 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-300 | 300 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
PPT975-300LP | 300 | 4 | BeO | Thin | 0.975 | 0.375 | 0.170 | 3 |
TPT1250-500 | 500 | 2 | BeO | Thick | 1.250 | 0.500 | 0.170 | 3 |
TPT1900-1250 | 1250 | 0.4 | BeO | Thick | 1.900 | 1.040 | 0.190 | 4 |
