ATM Microwave中高功率可变衰减器
发布时间：2022-12-07 16:40:11 浏览：653
可变衰减器是种新技术可调式电子元器件。选用厚薄膜生产工艺设计的可变衰减器被普遍应用在通信设备、测试设备和共用电视天线系统用作调整信号频率的功能。

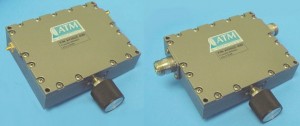

ATM Microwave制造多种具有SMA和N型连接器的中高功率“CVA”衰减器。ATMMicrowave中高功率可变衰减器提供15W、30W和50W规格型号。
ATM Microwave是美国老牌子的微波元件生产商。主要产品为同轴和波导器件产品，功能包含适配器、衰减器、耦合器、移相器、终端负载，及其Ka波段通讯卫星器件系列，产品满足空间应用标准和验证.
深圳市立维创展科技有限公司，持续ATM microwave代理渠道，为中国客户提供技术支持。
详情了解ATM Microwave请点击：http://www.leadwaytk.com/brand/53.html
MEDIUM POWER (15W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector Type | Freq. (GHz) | Atten. Range (dB) | Insertion Loss
dB max. | VSWR
(Typ.) | Flatness
+/- (dB) | Model No. |
SMA | 0.85 - 2.5 | 30 | 0.5 | 1.5 * | N/A | AV262D-30 |
0.85 - 4.0 | 30 | 0.5 | 1.5 * | N/A | AV262E-30 |
TYPE-N | 0.85 - 2.5 | 30 | 0.5 | 1.5 * | N/A | AV262D-30N/F |
0.85 - 4.0 | 30 | 0.5 | 1.5 * | N/A | AV262E-30N/F |
HIGH POWER (30W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector
Type | Freq. (GHz) | Atten
Range (dB) | Insertion Loss
(dB max.) | VSWR
max | Flatness
+/- (dB) | Model No. |
SMA | 0.45 - 1.0 | 6 | 0.5 | 1.7 | N/A | AH30V081-6 |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH30V082-6 |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH30V083L-10 |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH30V083L1-10 |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH30V083-10 |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH30V084-10 |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH30V085-10 |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH30V086-10 |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH30V087-10 |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH30V087-15 |
TYPE-N | 0.45 - 1.0 | 6 | 0.5 | 1.7 | N/A | AH30V081-6N/F |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH30V082-6N/F |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH30V083L-10N/F |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH30V083L1-10N/F |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH30V083-10N/F |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH30V084-10N/F |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH30V085-10N/F |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH30V086-10N/F |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH30V087-10N/F |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH30V087-15N/F |
VERY HIGH POWER (50W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector Type | Freq (GHz) | Atten
Range (dB) | Insertion Loss
(dB max.) | VSWR
max | Flatness
+/- (dB) | Model No. |
SMA | 0.45 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V081-6 |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V082-6 |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH50V083L-10 |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH50V083L1-10 |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH50V083-10 |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH50V084-10 |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH50V085-10 |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH50V086-10 |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH50V087-10 |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH50V087-15 |
TYPE-N | 0.45 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V081-6N/F |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V082-6N/F |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH50V083L-10N/F |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH50V083L1-10N/F |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH50V083-10N/F |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH50V084-10N/F |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH50V085-10N/F |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH50V086-10N/F |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH50V087-10N/F |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH50V087-15N/F |
