KRYTAR同轴适配器
发布时间：2022-06-01 17:10:04 浏览：865

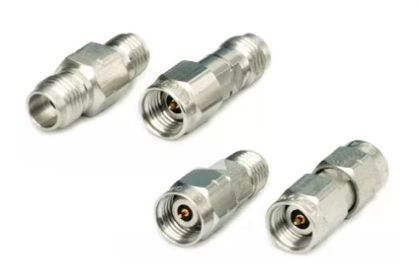

KRYTAR设计和制作极为稳固的射频/微波同轴适配器，可用作商业服务和国防军事市场的各种无线通信应用、检测设备和天线设备。
KRYTAR同轴适配器可提供串联和串联之间的连接器配备，包括母对公、公对母、公对公和母对母。连接器类型包括SMA、2.92mm、2.4mm和2.92mm至2.4mm。
KRYTAR同轴适配器通常有现货供应至30天ARO。
KRYTAR为满足或超过关键功能和/或包装规格的订制设计提供完整性的工程服务。
特征
DC至 67 GHz
SMA / 3.5 mm / 2.4 mm / 2.92 mm
深圳市立维创展科技授权代理RADITEK产品，部分型号备有现货。产品原装进口，质量保证，欢迎咨询。
详情了解RADITEK请点击：http://www.leadwaytk.com/brand/13.html
Model Number | Freq. Min (DC) | Freq. Max(GHz) | Adapter Type | Type Connector | Connector Configuration | VSWR (Max) |
4030 | DC | 67 | In Series | 1.85mm | Female to Male | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
4031 | DC | 67 | In Series | 1.85mm | Male to Male | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
4032 | DC | 67 | In Series | 1.85mm | Female to Female | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
3030 | DC | 50 | In Series | 2.4mm | Female to Male | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
3031 | DC | 50 | In Series | 2.4mm | Male to Male | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
3032 | DC | 50 | In Series | 2.4mm | Female to Female | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
2030 | DC | 40 | In Series | 2.92mm | Female to Male | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
2031 | DC | 40 | In Series | 2.92mm | Male to Male | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
2032 | DC | 40 | In Series | 2.92mm | Female to Female | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
5010 | DC | 40 | Between Series | 2.92mm to 2.4mm | Female to Female | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5020 | DC | 40 | Between Series | 2.92mm to 2.4mm | Female to Male | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5030 | DC | 40 | Between Series | 2.92mm to 2.4mm | Male to Female | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5040 | DC | 40 | Between Series | 2.92mm to 2.4mm | Male to Male | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
1030 | DC | 27 | In Series | SMA | Female to Male | 1.10, DC to 18 GHz1.15, 18 to 27 GH |
1031 | DC | 27 | In Series | SMA | Male to Male | 1.10, DC to 18 GHz1.15, 18 to 27 GHz |
1032 | DC | 27 | In Series | SMA | Female to Female | 1.10, DC to 18 GHz1.15, 18 to 27 GHz |
