NOVA射频微波嵌入式隔离器
发布时间：2020-11-11 15:36:01 浏览：1846

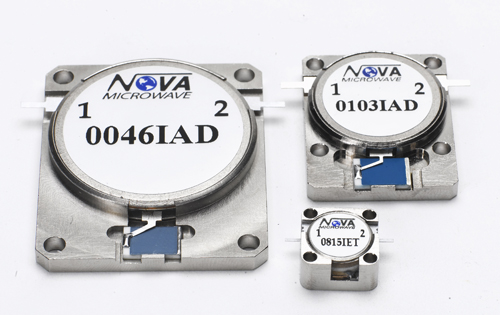

NOVA微波提供一系列嵌入式隔离器，具有广泛的封装尺寸和频带，专为通信应用、军事应用、蜂窝和无线市场设计。NOVA微波在设计阶段对可靠性、价格和可制造性进行了优化。NOVA微波插入式隔离器由优质材料制成，以确保在整个温度范围内的最佳性能。为确保磁场稳定且不随温度波动，在最终试验之前，所有降下隔离器的温度循环范围为-50°C至+100°C。NOVA微波嵌入式隔离器具有相位匹配、逆时针旋转、更高的反向功率能力和所需的互调规范可根据要求提供。
深圳市立维创展科技是NOVA的经销商，主要提供NOVA的各种微带线环形器与微带线隔离器，产品原厂进口，极具价格优势，欢迎咨询。
详情了解NOVA微波嵌入式隔离器请点击：http : //www.leadwaytk.com/public/brand/8.html
或联系我们的工程师：0755-83050846 QQ：3312069749
FREQUENCY | MODEL | ISOLATION | INS. LOSS | VSWR | TEMP | FWD | REV |
GHZ |
| dB (Min.) | dB(Max.) | (Max.) | ( oC ) |
|
|
|
|
|
|
|
| POWER (WATTS) |
|
0.450-0.470 | 0046IAD | 20 | 0.4 | 1.25 | 65 | 250 | 65 |
0.450-0.500 | 0048IAD | 20 | 0.5 | 1.25 | 65 | 250 | 65 |
0.470-0.512 | 0049IAD | 20 | 0.5 | 1.25 | 65 | 250 | 65 |
0.810-0.826 | 0082IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.810-0.915 | 0086IAD | 20 | 0.35 | 1.25 | 65 | 150 | 65 |
0.824-0.849 | 0084IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.860-0.904 | 0088IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.880-0.940 | 0091IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.890-0.960 | 0092IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.915-0.964 | 0094IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
0.980-1.020 | 0100IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
1.000-1.060 | 0103IAD | 20 | 0.3 | 1.25 | 65 | 150 | 65 |
1.000-1.100 | 0105IAD | 20 | 0.3 | 1.25 | 65 | 150 | 65 |
1.030-1.090 | 0106IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
1.250-1.350 | 0130IAD | 20 | 0.3 | 1.25 | 65 | 150 | 65 |
1.400-1.600 | 0150IAD | 20 | 0.4 | 1.25 | 65 | 150 | 65 |
1.429-1.453 | 0144IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
1.429-1.501 | 0147IAD | 22 | 0.35 | 1.2 | 65 | 150 | 65 |
1.477-1.501 | 0149IAD | 22 | 0.3 | 1.2 | 65 | 150 | 65 |
1.500-1.660 | 0158IAD | 20 | 0.35 | 1.25 | 65 | 150 | 65 |
1.710-1.785 | 0175IAD | 20 | 0.3 | 1.25 | 65 | 125 | 50 |
1.710-1.880 | 0179IAD | 20 | 0.35 | 1.25 | 65 | 125 | 50 |
1.805-1.880 | 0184IAD | 20 | 0.35 | 1.25 | 45 | 125 | 50 |
1.850-1.990 | 0192IAD | 20 | 0.35 | 1.25 | 45 | 125 | 50 |
1.930-1.990 | 0196IAD | 20 | 0.3 | 1.25 | 45 | 125 | 50 |
11.100-13.700 | 1240IED | 20 | 0.4 | 1.25 | 45 | 25 | 2 |
11.500-16.000 | 1375IED | 17 | 0.5 | 1.35 | 45 | 25 | 2 |
12.700-14.500 | 1360IED | 20 | 0.35 | 1.25 | 45 | 25 | 2 |
14.000-14.500 | 1425IED | 20 | 0.4 | 1.25 | 45 | 25 | 2 |
14.500-19.700 | 1710IET | 18 | 0.5 | 1.3 | 45 | 20 | 2 |
17.700-19.700 | 1870IET | 20 | 0.5 | 1.25 | 45 | 20 | 2 |
2.000-2.300 | 0215IAD | 20 | 0.5 | 1.25 | 45 | 125 | 50 |
2.000-2.300 | 0225IAD | 20 | 0.5 | 1.25 | 45 | 125 | 50 |
2.300-2.500 | 0240IAD | 20 | 0.4 | 1.25 | 45 | 125 | 50 |
2.300-2.700 | 0250IAD | 20 | 0.4 | 1.25 | 45 | 125 | 50 |
2.400-2.500 | 0245IAD | 20 | 0.35 | 1.25 | 45 | 125 | 50 |
2.500-2.900 | 0270IAD | 20 | 0.35 | 1.25 | 45 | 125 | 50 |
2.900-3.100 | 0300IAD | 20 | 0.4 | 1.25 | 45 | 125 | 50 |
3.300-3.600 | 0345IAD | 20 | 0.4 | 1.25 | 45 | 125 | 50 |
3.400-4.200 | 0380IED | 20 | 0.4 | 1.25 | 65 | 50 | 2 |
3.600-4.300 | 0395IED | 20 | 0.4 | 1.25 | 45 | 50 | 2 |
4.200-4.400 | 0430IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
4.400-5.000 | 0470IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
5.000-6.500 | 0575IED | 17 | 0.6 | 1.25 | 45 | 35 | 2 |
5.400-5.900 | 0565IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
5.800-6.500 | 0615IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
6.400-7.200 | 0680IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
6.500-8.500 | 0750IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
7.100-7.900 | 0760IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
7.200-8.400 | 0780IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
7.800-8.500 | 0815IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
8.300-8.800 | 0855IED | 20 | 0.4 | 1.25 | 45 | 35 | 2 |
8.500-11.500 | 1000IED | 17 | 0.5 | 1.35 | 45 | 30 | 2 |
9.000-9.700 | 0935IED | 20 | 0.35 | 1.25 | 45 | 30 | 2 |
9.500-12.750 | 1112IED | 20 | 0.4 | 1.25 | 45 | 25 | 2 |
9.700-11.700 | 1070IED | 20 | 0.4 | 1.25 | 45 | 30 | 2 |
