RF-LAMBDA压控移相器
发布时间：2023-07-11 16:47:18 浏览：1283
移相器是种最常见的电源电路，能够将模拟输入的相位移动相应方向，从而实现了信号的功率滤波、调制、解调等作用。移相器工作原理是通过RC电路的相位差性能，通过调节电容或电阻数值来调整电源的相位差，从而实现了相位移动的目的。
RF-LAMBDA压控移相器具备无限相位设计的电压可变宽带移相器，能够对所有射频微波相位实施微调。
特性
•宽带使用350-450MHz
•360°相移
•低插入损耗和低相位偏移
•单调操控应用
典型应用
•测试和测量
•国防军事和航天工程
•研制开发
深圳市立维创展科技是RF-LAMBDA的经销商， RF-LAMBDA的产品包括：无源控制模块，有源控制模块，宽带功率放大器，窄带PA和驱动放大器，产品生产线均根据美国军用设计标准与生产制造，逐步广泛运用于航天，航空，军用设备，卫星通讯，雷达等高端工程项目。
详情了解RF-LAMBDA请点击：http : //www.leadwaytk.com/public/brand/3.html
Part Number | "Frequency Range " (GHz) | Degree | Bandwith | VSWR | Insertion Loss (dB) | Power (W) | Voltage | Packaging |
RVPT0003MAC | 0.06~0.08 | 180° | Full | 1.50 | 3.00 | 0.10 | DC-15 | Coaxial |
RVPT0117MBC | 0.07~0.10 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0120MBC | 0.10~0.14 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0117MAC | 0.01~0.17 | 180° | 30% | 1.60 | 1.50 | 0.10 | DC-20 | Coaxial |
RVPT0117MBD | 0.01~0.17 | 360° | 30% | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |

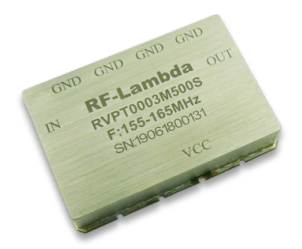

RVPT0003M500S | 0.16~0.17 | 500° | Full | 1.60 | 4.50 | 0.10 | DC~12 | Surface Mount |
RVPT0117MCC | 0.13~0.17 | 360° | Full | 2.00 | 5.00 | 1.00 | DC~10 | Coaxial |
RVPT1725MAC | 0.17~0.25 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT1725MBC | 0.17~0.25 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0003MAS | 0.01~0.30 | 180° | 10% | 1.60 | 1.50 | 0.20 | 0-15 | Surface Mount |
RVPT0003MBS | 0.01~0.30 | 360° | 10% | 1.60 | 3.00 | 0.20 | 0-15 | Surface Mount |
RVPT396M406MBC | 0.40~0.41 | 360° | Full | 2.00 | 3.50 | 0.50 | 0~15 | Surface Mount |
RVPT350M450MBC | 0.35~0.45 | 360° | Full | 1.60 | 5.00 | 0.50 | 0~10 | Surface Mount |
RVPT0205MAC | 0.25~0.50 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0205MBC | 0.25~0.50 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0501GAC | 0.50~1.00 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0501GBC | 0.50~1.00 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT1000MBSB | 0.90~1.05 | 180 | Full | 1.50 | 5.00 | 0.20 | DC~12 | Surface Mount |
RVPT0102GAC | 1.00~2.00 | 180° | Full | 2.00 | 3.00 | 0.10 | DC-20 | Coaxial |
RVPT0102GBC | 1.00~2.00 | 360° | Full | 2.00 | 4.00 | 0.10 | DC-20 | Coaxial |
RVPT0302GAS | 0.30~2.00 | 180° | 10% | 2.00 | 2.00 | 0.20 | 0-15 | Surface Mount |
RVPT0302GBS | 1.00~2.00 | 360° | Full | 2.50 | 4.00 | 0.20 | 0-10 | Surface Mount |
RVPT0204GAC | 2.00~4.00 | 180° | Full | 2.50 | 3.50 | 0.10 | DC-10 | Coaxial |
RVPT0204GBC | 2.00~4.00 | 360° | Full | 2.50 | 5.00 | 0.10 | DC-13 | Coaxial |
RVPT0204GBC-D | 2.00~4.00 | 360° | Full | 2.80 | 5.50 | 0.05 | DC-10 | Surface Mount |
RVPT0207GAC | 2.00~7.00 | 180° | Full | 2.50 | 2.50 | 0.20 | 0-14 | SMA |
RVPT0408GAC | 4.00~8.00 | 180° | Full | 2.50 | 4.50 | 0.10 | DC-10 | Coaxial |
RVPT0408GBC | 4.00~8.00 | 360° | Full | 2.00 | 8.00 | 0.10 | DC-13 | Coaxial |
RVPT0313GAC | 3.00~13.00 | 180° | Full | 2.50 | 3.00 | 0.10 | 0-13 | SMA |
RVPT0818GAC | 8.00~18.00 | 180° | Full | 2.50 | 8.00 | 0.10 | DC-10 | Coaxial |
RVPT1218GAC | 12.00~18.00 | 180° | Full | 2.50 | 6.00 | 0.10 | DC-10 | Coaxial |
RVPT0818GBC | 8.00~18.00 | 360° | Full | 2.50 | 8.00 | 0.10 | DC-13 | Coaxial |
RVPT0618GAC | 6.00~18.00 | 180° | Full | 3.00 | 5.00 | 0.10 | 0-15 | SMA |
RVPT0220GAC | 2.00~20.00 | 180° | Full | 2.50 | 7.00 | 0.10 | DC-13 | Coaxial |
RVPT1822GBC | 18.00~26.00 | 360° | Full | 2.50 | 10.00 | 0.10 | DC-15 | Coaxial |
RVPT1529GAC | 18.00~26.50 | 360° | Full | 2.50 | 3.00 | 0.10 | 0-16 | SMA |
RVPT2127GBC | 21.00~27.00 | 360° | Full | 2.50 | 14.00 | 0.10 | DC-15 | Coaxial |
RVPT2229GBC | 15.00~29.00 | 360° | Full | 2.50 | 14.00 | 0.10 | 20 | Coaxial |
RVPT2231GBC | 22.00~33.00 | 360° | Full | 2.50 | 14.00 | 0.10 | DC-15 | Coaxial |
