XC9221系列降压DC/DC控制器TOREX
发布时间：2023-08-01 16:37:22 浏览：5712

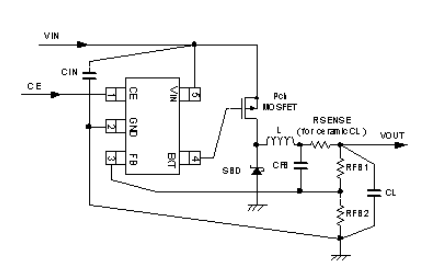

TOREX的XC9221系列是多功能降压DC/DC控制器IC。给该芯片外部配备一种开关器件，一种功率电感，一种二级管和两个电容就能获得一种高效率,相对稳定的，输出电流高至3A的开关电源。能使用低ESR电容例如陶瓷电容用作其输出电容。
XC9221系列控制器有个0.9V(±1.5%)基准电压，采用外置采样电阻就可以随意设定输出电压。工作频率为300kHz,500kHz和1MHz，
XC9221系列控制器能使用中小型外部器件。针对软启动时长，XC9221A和C系列是内部设置为4ms，XC9221B和D系列能够在外部设定。XC9221系列控制器具备内嵌的UVLO（欠压锁闭）功能性，当输入电压降至2.3V或更低情况下，外部的P端面开关器件将会被强制性关闭。
特征
工作电压范围：2.8V～16.0V
输出电压外部设定：0.9V(准确度±1.5V)
工作频段：300k,500k,1.0MHz
控制方法：PWM/PFM自动启动控制
带软启动特性：内部设定4ms(TypeA500kHz),外部设定(TypeB)
短路保护：积分保护1.0ms(A,B类型),短路保护
低ESR电容：陶瓷电容
TOREX半导体主要提供COMS、传感器、二极管等元器件，产品以小体积、性能卓越而著名。
深圳市立维创展科技有限公司，优势分销TOREX电源器件，大量现货库存，欢迎合作。
详情了解TOREX请点击：http://www.leadwaytk.com/brand/62.html
型号 | Type | Output Voltage | Oscillation Frequency | Packages |
XC9221A093ER-G | Soft-start internally set with integral protection function | FB type | 300kHz | USP-6C |
XC9221A093MR-G | Soft-start internally set with integral protection function | FB type | 300kHz | SOT-25 |
XC9221A095ER-G | Soft-start internally set with integral protection function | FB type | 500kHz | USP-6C |
XC9221A095MR-G | Soft-start internally set with integral protection function | FB type | 500kHz | SOT-25 |
XC9221A09AER-G | Soft-start internally set with integral protection function | FB type | 1.0MHz | USP-6C |
XC9221A09AMR-G | Soft-start internally set with integral protection function | FB type | 1.0MHz | SOT-25 |
XC9221B093ER-G | Soft-start externally set with integral protection function | FB type | 300kHz | USP-6C |
XC9221B093MR-G | Soft-start externally set with integral protection function | FB type | 300kHz | SOT-25 |
XC9221B095ER-G | Soft-start externally set with integral protection function | FB type | 500kHz | USP-6C |
XC9221B095MR-G | Soft-start externally set with integral protection function | FB type | 500kHz | SOT-25 |
XC9221B09AER-G | Soft-start externally set with integral protection function | FB type | 1.0MHz | USP-6C |
XC9221B09AMR-G | Soft-start externally set with integral protection function | FB type | 1.0MHz | SOT-25 |
XC9221C093ER-G | Soft-start internally set without integral protection function | FB type | 300kHz | USP-6C |
XC9221C093MR-G | Soft-start internally set without integral protection function | FB type | 300kHz | SOT-25 |
XC9221C095ER-G | Soft-start internally set without integral protection function | FB type | 500kHz | USP-6C |
XC9221C095MR-G | Soft-start internally set without integral protection function | FB type | 500kHz | SOT-25 |
XC9221C09AER-G | Soft-start internally set without integral protection function | FB type | 1.0MHz | USP-6C |
XC9221C09AMR-G | Soft-start internally set without integral protection function | FB type | 1.0MHz | SOT-25 |
XC9221D093ER-G | Soft-start externally set without integral protection function | FB type | 300kHz | USP-6C |
XC9221D093MR-G | Soft-start externally set without integral protection function | FB type | 300kHz | SOT-25 |
XC9221D095ER-G | Soft-start externally set without integral protection function | FB type | 500kHz | USP-6C |
XC9221D095MR-G | Soft-start externally set without integral protection function | FB type | 500kHz | SOT-25 |
XC9221D09AER-G | Soft-start externally set without integral protection function | FB type | 1.0MHz | USP-6C |
XC9221D09AMR-G | Soft-start externally set without integral protection function | FB type | 1.0MHz | SOT-25 |
