XC6366系列降压DC/DC控制器TOREX
发布时间：2023-06-02 16:54:17 浏览：1201

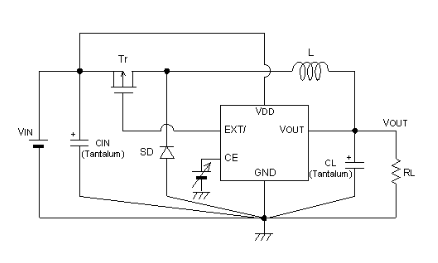

TOREX XC6366系列内嵌高速低通态电阻驱动器的通用型高频率降压DC/DC控制器集成电路。应用晶体管，电感线圈，二极管和电容器共4种外接器件，可搭建输出电流为1A之上高效化降压DC/DC转换器。
XC6366系列降压DC/DC控制器能够在1.5V～6.0V(精密度±2.5％)范围之内，以0.1V的间距实现设置(VOUT型)。而且，除去VOUT型之外，还具有内嵌1.0V的基准电压源，能够外接器件随意设置输出电压的型号规格(FB型)。
因开关频率高至300kHz，可以使用中小型外接器件。XC6366系列降压DC/DC控制器在小负载时，PWM／PFM切换控制型XC6366系列以PFM作业形式进行工作。因此，在从小负载到大输出电流的整体负载范围之内，实现高效化。
XC6366系列降压DC/DC控制器软启动时间段有，在设备设置为10ms的型号规格(A,B型)，及其适用外接电阻和电容器进行优化的的型号规格(C,D型)。
XC6366系列降压DC/DC控制器应用待机性能，可停止运行使电流量损耗实现0.5μA以下(CE端"L")。
XC6366系列降压DC/DC控制器内嵌UVLO性能，当输入电压在正常电流电压以下时，会强制性的把外接晶体管切断。
特性
输入电压范围：2.2V～10V
输出电压范围：1.5V～6.0V(0.1V间距),±2.5%
工作频率：300kHz±15%,客户定制180,500kHz
输出电流：1.0A(VIN=5.0V,VOUT=3.0V)
高转换效率：92%(TYP.)
待机电流：ISTB=0.5μA(MAX.)
