CINCON封装式 AC-DC 电源
发布时间：2023-05-30 17:04:43 浏览：1083

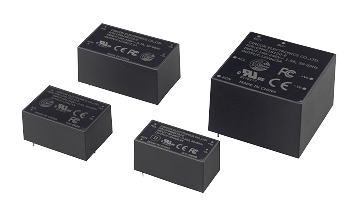

CINCON封装式AC-DC电源具有多种规格尺寸，频率范围从6W到100W。所有产品均已全部通过IEC62368-1、UL62368-1、EN62368-1及其EN55032B类和CIRSS/FCCB类验证。针对CINCON的部分最新款号，它们满足EN60335-1标准规定，并且具有200的特殊性能%峰值负载性能。这种特殊的200%峰值负载性能满足客户在短期内突发性能源需求，现在能够避免选择其它超规格产品，降低成本和规划空间/占用空间损耗。
深圳市立维创展科技是CINCON电源模块的代理经销商，提供CINCON电源模块的DC-DC转换器、AC-DC电源、LED电源等，产品原装进口，质量保障，极具价格优势，欢迎咨询
详情了解CINCON电源请点击：http://www.leadwaytk.com/article/2177.html
ITE/Industrial On-Board Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM04S | 4W | 85-305 | 3.3V, 5V, 12V, 15V, 24V | Altitude 5000m
Class II | 1.56x0.764x0.720
(PCB-mount)
1.62x0.83x0.787
(Encapsulated)
1.95.x0.71x0.689
(Wafer) |
CFM06S | 6W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | Altitude 5000m
Class II | 1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer) |
CFM12S | 12W | 90-264 | 5V, 9V, 12V, 15V, 24V | Altitude 5000m
Approval EN60335-1
Class II | 1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer) |
CFM20S | 20W | 90-264 | 5V, 12V, 15V, 24V, 48V | Altitude 5000m
Meets EN60335-1
Class II | 2.382x1.300x0.906
(PCB-mount)
2.482x1.402x0.933
(Encapsulated)
3.000x1.300x0.831
(Wafer) |
CFM25S | 25W | 90-264 | 5V, 12V, 15V, 24V, 36V, 48V | 2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II | 2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer) |
CFM36S | 36W | 90-264 | 5V, 12V, 15V, 24V, 48V | Altitude 5000m
Class I & Class II | 3.00x1.50x1.100
(PCB-mount)
3.10x1.60x1.134
(Encapsulated)
3.00x1.50x1.000
(Wafer) |
CFM41S | 40W | 90-264 | 12V, 15V, 24V, 36V, 48V, 5V | 2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II | 2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer) |
CFM61S | 60W | 90-264 | 5V, 12V, 15V, 24V, 36V, 48V | 2 Times Peak Load
Altitude 5000m
Class II | 2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer) |
ITE/Industrial Brick Power
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CBM70S | 70W | 90-264 | 12V, 24V, 36V, 48V | Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I | 2.28x2.40x0.67 |
zCBM150S | 150W | 90-264 | 12V, 24V, 28V, 36V, 48V, 54V | Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I | 4.60x2.40x0.78 |
CBM101S | 100W | 90-264 | 12V, 24V, 28V, 36V, 48V | Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I | 4.60x2.40x0.67 |
PDF700S | 700W | 90-264 | 12V, 24V, 28V, 48V, 56V | Low Profile
Built-in PFC
Altitude 5000
Class I |
|
PFC750 | 750W | 90-264 | 390V | Low Profile
Built-in PFC
Altitude 5000 |
|
Medical Class II On-Board Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM21 | 20W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | 2MOOP | 2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal) |
CFM21M | 20W | 90-264 | 5V, 9V, 12V, 15V, 24V | 2MOPP
Low Profile
Altitude 5000m | 2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal) |
