​XC6365系列降压DC/DC控制器TOREX

发布时间：2023-05-19 16:50:59     浏览：1219

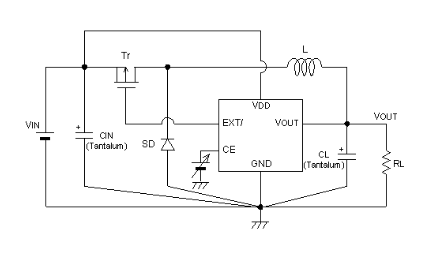

TOREX XC6365系列是内嵌高速度低通态电阻控制器的通用型高频率降压DC/DC控制器集成电路。采用晶体管，电感线圈，二极管和电容器共4种外置器件，可创建输出电流为1A以上高效率降压DC/DC转换器。

XC6365系列控制器能够在1.5V～6.0V(精密度±2.5％)范围之内，以0.1V的间距实现设置(VOUT型)。并且，除去VOUT型之外，还具有内嵌1.0V的基准电压源，能够外置器件任意设置输出电压的规格(FB型)。

XC6365系列控制器因开关频率高至300kHz，可以使用微型外置器件。因此，在由小负载至大输出电流的整体负载范围之内，高达高效率。

XC6365系列控制器软启动时间有，在内部设置为10ms的规格(A,B型)，及其适用外置电阻和电容器进行优化的规格(C,D型)。

采用待机性能，可停止运行使电流损耗高达0.5μA以下(CE端"L")。

XC6365系列控制器内嵌UVLO性能，当输入电压在指定电压状态时，会强制性把外置晶体管中断。

特性

输入电压范围：2.2V～10V

输出电压范围：1.5V～6.0V(0.1V间距),±2.5%

工作频率：300kHz±15%,客户定制180,500kHz

输出电流：1.0A(VIN=5.0V,VOUT=3.0V)

高转换效率：92%(TYP.)

待机电流：ISTB=0.5μA(MAX.)

TOREX半导体主要提供COMS、传感器、二极管等元器件，产品以小体积、性能卓越而著名。

深圳市立维创展科技有限公司，优势分销TOREX电源器件，大量现货库存，欢迎合作。

详情了解TOREX请点击：http://www.leadwaytk.com/brand/62.html


型号

Type

Output Voltage

Oscillation Frequency

Packages

XC6365A152ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

180kHz

USP-6C

XC6365A152MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

180kHz

SOT-25

XC6365A153ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

300kHz

USP-6C

XC6365A153MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

300kHz

SOT-25

XC6365A155ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

500kHz

USP-6C

XC6365A155MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

500kHz

SOT-25

XC6365A162ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

180kHz

USP-6C

XC6365A162MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

180kHz

SOT-25

XC6365A163ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

300kHz

USP-6C

XC6365A163MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

300kHz

SOT-25

XC6365A165ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

500kHz

USP-6C

XC6365A165MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

500kHz

SOT-25

XC6365A172ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

180kHz

USP-6C

XC6365A172MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

180kHz

SOT-25

XC6365A173ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

300kHz

USP-6C

XC6365A173MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

300kHz

SOT-25

XC6365A175ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

500kHz

USP-6C

XC6365A175MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

500kHz

SOT-25

XC6365A182ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

180kHz

USP-6C

XC6365A182MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

180kHz

SOT-25

XC6365A183ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

300kHz

USP-6C

XC6365A183MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

300kHz

SOT-25

XC6365A185ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

500kHz

USP-6C

XC6365A185MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

500kHz

SOT-25

XC6365A192ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

180kHz

USP-6C

XC6365A192MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

180kHz

SOT-25

XC6365A193ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

300kHz

USP-6C

XC6365A193MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

300kHz

SOT-25

XC6365A195ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

500kHz

USP-6C

XC6365A195MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

500kHz

SOT-25

XC6365A202ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

180kHz

USP-6C

XC6365A202MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

180kHz

SOT-25

XC6365A203ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

300kHz

USP-6C

XC6365A203MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

300kHz

SOT-25

XC6365A205ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

500kHz

USP-6C

XC6365A205MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

500kHz

SOT-25

XC6365A212ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

180kHz

USP-6C

XC6365A212MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

180kHz

SOT-25

XC6365A213ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

300kHz

USP-6C

XC6365A213MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

300kHz

SOT-25

XC6365A215ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

500kHz

USP-6C

XC6365A215MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

500kHz

SOT-25

XC6365A222ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

180kHz

USP-6C

XC6365A222MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

180kHz

SOT-25

XC6365A223ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

300kHz

USP-6C

XC6365A223MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

300kHz

SOT-25

XC6365A225ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

500kHz

USP-6C

XC6365A225MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

500kHz

SOT-25

XC6365A232ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.3V

180kHz

USP-6C

XC6365A232MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.3V

180kHz

SOT-25
