CINCON医用电源
发布时间：2023-02-22 16:44:19 浏览：718

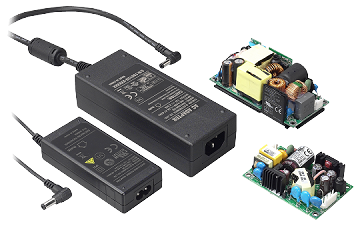

CINCON掌握了突破15年的医疗器械设计经验，为客户提供多种产品和专业技能服务项目。医疗仪器具备低漏电流和极端环境耐受力，可满足医院和健康服务所使用的最高需求。CINCON提供多元化的医疗电源产品组合，具备通用性输入90~264Vac甚至是80~264Vac的I类或II类适配器。CINCON所有的医疗仪器均符合2MOPP、ANSI/AAMI ES60601-1/EN60601-1 Ed 3.1 和 EN60601-1-2 Ed4.0 B 类的行业最高需求。此外，所有产品均符合CEC和ErPVI级标准规定。
外接医疗电源，有医疗II类可交换插头适配器，功率范围从15W到30W起。还有台式机医疗II类适配器，功率范围从36W到100W启动。此外，CINCON还提供70W和160W的ClassI和ClassII选项的台式机医疗电源适配器。
CINCON内嵌医疗电源有输出功率20W的ClassII开放性板载和输出功率范围从40W到500W的I类开放性连接器型。还提供机壳包含选项。此外，CINCON还有内嵌底板冷却技术的医疗电源，功率范围从130W到500W。
深圳市立维创展科技是CINCON电源模块的代理经销商，提供CINCON电源模块的DC-DC转换器、AC-DC电源、LED电源等，产品原装进口，质量保障，极具价格优势，欢迎咨询
详情了解CINCON电源请点击：http://www.leadwaytk.com/article/2177.html
Medical Class I & Class II Adapter
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
TR70M | 70W | 80-264 | 12V, 15V, 18V, 24V, 36V, 48V | 2MOPP
Altitude 5000m | 4.724x2.047x1.220 |
TR160M | 160W | 80-264 | 12V, 24V, 36V, 48V | 2MOPP
Altitude 5000m | 5.906x2.756x1.496 |
TR220M | 220W | 80-264 | 12V, 24V, 36V, 48V, 56V | 2MOPP
Altitude 5000m | 7.087x2.953x1.752 |
Medical Class II Adapter
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
TR36M | 36W | 80-264 | 5V, 9V, 12V, 13.5V, 15V, 18V, 24V, 36V, 48V | 2MOPP
Altitude 5000m
EN60601-1-11 IP21
Meets EN60335-1 | 3.937x1.771x0.886 |
TR60M | 60W | 90-264 | 5V, 12V, 15V, 18V, 19V, 24V, 36V, 48V | 2MOPP
Level V | 5.197x2.283x1.201 |
TR100M | 100W | 90-264 | 12V, 15V, 18V, 20V, 24V, 48V | 2MOPP | 5.591x2.283x1.457 |
Medical Class II Interchangeable Plug Adapter
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
TR15RAM | 15W | 90-264 | 5V, 12V, 15V, 24V | 2 MOPP | 3.173x1.885x1.704 |
TR18RDM | 18W | 80-264 | 5V, 9V, 12V, 15V, 18V, 24V | 2MOPP
Altitude 5000m
EN60601-1-11 IP22,
Meets EN60335-1 | 3.165x1.693x1.453 |
TR30RDM | 30W | 80-264 | 5V, 9V, 12V, 15V, 18V, 24V | 2MOPP
Altitude 5000m
EN60601-1-11 IP22
Meets EN60335-1 | 3.807x2.283x1.703 |
TR30RAM | 30W | 90-264 | 5V, 9V, 12V, 15V, 18V, 24V | 2 MOPP | 4.278x2.440x1.445 |
Medical Class II On-Board Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM21 | 20W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | 2MOOP | 2.38x1.60x0.80(PCB-mount)
3.00x1.60x0.77(Wafer)
2.53x1.74x0.80(Encapsulated)
3.00x1.60x0.77(Screw Terminal) |
CFM21M | 20W | 90-264 | 5V, 9V, 12V, 15V, 24V | 2MOPP
Low Profile
Altitude 5000m | 2.38x1.60x0.80(PCB-mount)
3.00x1.60x0.77(Wafer)
2.53x1.74x0.80(Encapsulated)
3.00x1.60x0.77(Screw Terminal) |
Medical Class I Connector Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM40M | 40W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V | 2MOPP | 3.000x2.000x0.948(PCB-mount)
3.000x2.000x0.909(Wafer)
3.200x2.441x1.260(Cover) |
CFM60M | 60W | 90-264 | 5V, 12V, 15V, 24V, 48V | 2MOPP | 4.000x2.000x1.100(Wafer)
4.606x2.441x1.575(Cover) |
CFM100M | 100W | 90-264 | 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V | 2MOPP | 5.000x3.000x1.050(Wafer) |
CFM150M | 150W | 90-264 | 12V, 24V, 36V, 48V | 2MOPP | 5.000x3.000x1.050(Wafer) |
Medical Baseplate-cooled Open Frame
Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) |
CFM130M | 130W | 80-264 | 12V, 18V, 19V, 24V, 36V, 48V | 2MOPP
Altitude 5000m
Class I & Class II | 3.000x2.000x1.20(Open-frame)
3.598x2.000x1.299(Baseplate)
3.598x2.520x1.358(Cover) |
CFM200M | 200W | 90-264 | 12V, 24V, 48V | 2MOPP
Class I & Class II | 4.000x2.000x1.480(Baseplate)
4.606x2.441x1.594(Cover) |
CFM300M | 300W | 90-264 | 12V, 24V, 36V, 48V | 2MOPP
Class I | 5.000x3.000x1.421(Baseplate)
5.355x3.425x1.591(Cover) |
CFM500M | 500W | 80-264 | 12V, 18V, 24V, 36V, 48V | 2MOPP
Altitude 5000m
Meets EN60335-1
Class I | 5.000x3.000x1.540(Baseplate)
5.354x3.425x1.673(Cover) |
