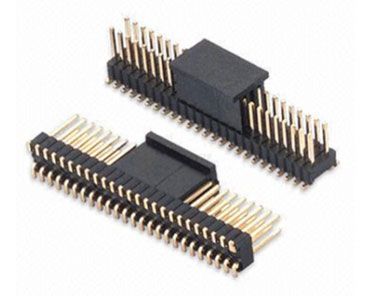

AgilBrick™ 2.54mm 板对板接头 G800 AMPHENOL

发布时间：2022-12-12 16:39:21 浏览：586

AMPHENOL AgilBrick™2.54mm板对板接头G800系列提供便捷的构造1至4A经济高效率的额定电压解决方案。AMPHENOL板对板接头G800系列支持定制，满足各种客户的需求。支持定制的引脚长度，包括接触管脚和焊尾，使其成为各种各样应用和特殊设计的理想化选择。AMPHENOL板对板接头G800系列也能够更轻易地从不同线路板组装配备中挑选，因为它兼容各种各样组装选择，包括垂直DIP、直角DIP、垂直SMT和直角SMT。

AMPHENOL AgilBrick™2.54mm板对板接头G800系列灵活且容易调整引脚长度，能够满足各种各样应用需求。

高性价比

主要用于线对板和板对板应用

兼容画中画流程

简易的管脚插入和在PCB上的高粘合强度

特征

支持定制的引脚长度，包括接触管脚和焊尾

多种组装选择，包括垂直DIP、直角DIP、垂直SMT和直角SMT

高温度热塑性塑料

卷带封装选择

便捷的构造

提供闪金、15u"金、30u"金或镀锡

RoHS合规性和无卤阻燃

提供较长的管脚清洁

优势

主要用于不同类型的应用和特殊设计

轻松选择线路板配接配备

回流兼容

兼容画中画流程

支持定制并且具有成本效率

增强的安全性和价格灵活性

满足环境、安全与健康需求

确保安全可靠接触

深圳市立维创展科技代理经销AMPHENOL公司各个领域产品系列，在AMPHENOL，我们相信在开展业务的过程中做出可持续的选择可以为股东创造短期和长期价值。AMPHENOL的每一项业务都致力于不断改进其设计，采购，制造和交付产品的方式，努力满足或超越客户对整个价值链中产品管理的期望。AMPHENOL 的业务将安全和环境保护作为首要任务，并根据ISO 14001和OHSAS 18001等公认标准管理这些计划。但是，认证和法律合规性还不够。AMPHENOL不仅仅遵守法规就能创造长期价值。

详情了解AMPHENOL可点击：http://www.leadwaytk.com/article/1321.html

零件号	产品详情
G800300010AKCEU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x8Pin,30μin Gold,NY6T,With Kink,5.84mm2.54mm3.05mm,Removed#5Pos
G800300018AKCEU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x8Pin,Gold Flash,NY6T,With Kink,5.84mm2.54mm3.05mm,Removed#5Pos
G800302018KYEU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x6Pin,Gold Flash,NY6T,With Kink,5.84mm2.54mm3.05mm
G800305005KYEU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x3Pin,15μin Gold,NY6T,With Kink,5.84mm2.54mm3.05mm
G800306005KYEU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x2Pin,15μin Gold,NY6T,With Kink,5.84mm2.54mm3.05mm
G800LF306018EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x2Pin,Gold Flash,LCP,3.3mm2.54mm3.3mm
G800LQ268018HR	Board mount - Header Plug - Pin Header 2.54mm Pitch STR DIP,1x40Pin, FULL G/F,LCP,6.0mm2.5mm3.0mm,Color-Black,Bag,Halogen Free
G800LQ291018HR	Pin Header 2.54mm Pitch STR DIP,1x17Pin,FULL G/F,LCP, 6.0mm2.5mm3.0mm,Color-Black,Bag
G800LQ293018HR	Pin Header 2.54mm Pitch STR DIP,1x15Pin,FULL G/F,LCP, 6.0mm2.5mm3.0mm,Color-Black,Bag
G800LQ300005AEU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR,1x8Pin,15μin Gold,LCP, 6.0mm2.54mm3.0mm, Removed#4pos
G800LQ300005EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x8Pin,15μin Gold,LCP,6.0mm2.54mm3.0mm
G800LQ3000104EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x8Pin,30μin Gold,LCP,6.0mm2.54mm3.0mm,Removed#4Pos
G800LQ300010TEU	Board mount - Header Plug - Pin Header 2.5mm Pitch Vertical,1x8Pin,30μin Gold,LCP,6.0mm2.54mm3.0mm
G800LQ300018AEU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR,1x8Pin,Gold Flash,LCP, 6.0mm2.54mm3.0mm, Removed#4pos
G800LQ300018EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x8Pin,Gold Flash,LCP,6.0mm2.54mm3.0mm
G800LQ301005EU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR DIP,1x7Pin,15μin Gold,LCP,6mm2.54mm3.0mm,Color-Black,Halogen Free
G800LQ302010HR	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x6Pin,30μin Gold,LCP,6.0mm2.5mm3.0mm
G800LQ302018BEU	PIN HDR,PITCH 2.54MM,STR
G800LQ302018HR	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x6Pin,Gold Flash,LCP,6.0mm2.5mm3.0mm
G800LQ302018TEU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR,1x6Pin,Gold Flash, LCP, 6.0mm2.54mm3.0mm, T&R,CAP-W=2.8mm,L=5mm/LCP, HALOGEN FREE
G800LQ303018EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x5Pin,Gold Flash,LCP,6.0mm2.54mm3.0mm
G800LQ303032TEU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR,1x5Pin,Matte TIN, LCP, 6.0mm2.54mm3.0mm, T&R,CAP-W=2.8mm,L=5mm/LCP, HALOGEN FREE
G800LQ304005EU	Board mount - Header Plug - Pin Header 2.54mm Pitch STR DIP,1x4Pin,15μin Gold,LCP,6.0mm2.54mm3.0mm,Color-Black
G800LQ304010EU	Board mount - Header Plug - Pin Header 2.54mm Pitch Vertical,1x4Pin,30μin Gold,LCP,6.0mm2.54mm3.0mm
