CINCON砖式 DC-DC 转换器

发布时间：2022-12-09 16:43:11 浏览：618

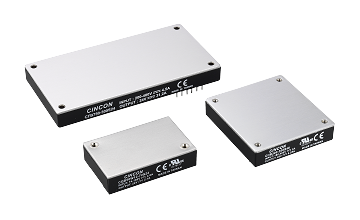

CINCON是经验丰富的DC/DC转换器制造厂商，CINCON的DC-DC选用砖式电源和转换器，提供标准规范的四分之一、半砖和全砖尺寸。CINCON的DC/DC砖设置在印刷线路板上，具备输入电压范围广、隔离防护、输出电压稳定性、效率更高、保护全方位等特性。

四分之一的砖尺寸，CINCON有50W到150W最率密度最高，输入范围最大宽度12:1。半砖尺寸，CINCON有50W到350W最率密度最高，输入范围最大宽度12:1。全砖尺寸，CINCON有400W到800W最率密度最高，输入范围最大宽度4:1。

CINCON不仅提供标准DC-DC砖式转换器还提供了即插即用DC-DC转换器模块，CMFC/CMFD系列产品，内嵌EMI解决方案，帮助客户处理不愉快的情况EMC问题。CINCON为了减少客户的研发时间，提供具体的应用阐述当作指导工具。

深圳市立维创展科技是CINCON电源模块的代理经销商，提供CINCON电源模块的DC-DC转换器、AC-DC电源、LED电源等，产品原装进口，质量保障，极具价格优势，欢迎咨询

详情了解CINCON电源请点击：http://www.leadwaytk.com/article/2177.html

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12	50W	14~160V	5V, 12V, 24V, 48V	3KVdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W12	150W	14~160V	5V, 12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB200W12	200W	14~160V	12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)

8:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W8	50W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W8	75W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W8	150W	9~75V	12V, 15V, 24V, 28V, 48V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQE50W	50W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB50W	50W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB60W-110S	60W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CQB100W-110S	100W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHE100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation	2.28×2.40x0.50 (Half Brick)
CQB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB150W-110S	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W	200W	10~36V, 18~75V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W-110S	200W	43~160V	5V, 12V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB300W	300W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL62368-1	2.28×2.40x0.50 (Half Brick)
CHB300W-110S	300W	43~160V	12V, 24V, 28V, 3.3V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CFB400W	400W	18~75V, 9~36V	12V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB600W-110S	600W	43~160VDC	12V, 24V, 28V, 48V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	4.60×2.40x0.50 (Full Brick)

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB50	50W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB75-300S	75W	180~450V	12V, 15V, 24V, 3.3V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB75	75W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100-110S	100W	66~160V	12V, 24V, 3.3V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100	100W	18~36V, 36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB100-110S	100W	66~160V	12V, 15V, 24V, 48V	3KVac Isolation EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB150-300S	150W	180~425V	12V, 15V, 24V, 28V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB150	150W	36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB150-110S	150W	66~160V	12V, 24V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB200	200W	18~36V	24V, 28V	2250Vdc Isolation UL62368-1 EN45545-2	2.28×1.45x0.50 (Quarter Brick)
CHB300-300S	300W	180~425V	12V, 24V, 28V, 48V, 5V	3KVAC Isolation UL60950-1 & CB	2.28×2.40x0.50 (Half Brick)
CHB350	350W	18~36V, 36~75V	12V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 2.28×2.40x0.52 (Half Brick)
CFB600	600W	18~36V, 36~75V	12V, 24V, 28V, 32V, 48V	1.5KVDC Isolation UL62368-1	4.60×2.40x0.50 (Full Brick)
CFB600-300S	600W	180~425V	12V, 24V, 48V	3KVAC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB750-300S	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVAC Isolation	4.60×2.40x0.50 (Full Brick)
CFB800	800W	18~36V	28V	1.5KVDC Isolation	4.60×2.40x0.50 (Full Brick)
