CREE射频 L波段雷达

发布时间：2021-02-24 17:07:12     浏览：1565

CREE射频的GaNonSiC解决方法是脉冲发生器和CWL波段应用领域的理想化解决方案。CREERF的解决方法具备各类功率电平、高增益/电平和高功率附加效率，可兼容交换-C基准的不断完善。以驱动新一代雷达和航空电子控制系统。

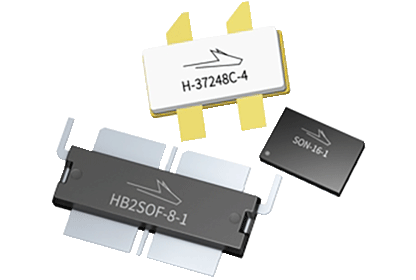

CREE射频的L波段产品系列包括宽带MMIC和晶体管。Cree的局部和无与伦比的晶体管解决方法阵列保证6W至1.4kW的功率技术水平。保证各类参考设计、行业领先模型和应用领域兼容工具，以帮助优化方案以取得成功。Cree的宽带MMIC解决方法保证多级增益值，功率电平可达35W，并可兼容传递链中的所有功能性。

深圳市立维创展科技是CREE的经销商，CREE公司产品包括：LED芯片、照明LED、背光LED、电源开关装置、射频设备用LED和无线电设备。中铁二院凭借其优越的供应渠道，拥有长期的库存以满足中国市场的需求。欢迎咨询。

 CREE射频 L波段雷达

SKU

Frequency (Min)

Frequency (Max)

Peak Output Power

Gain

Efficiency

Operating Voltage

Package Type

CMPA0060002D

DC

6 GHz

2 W

17 dB

0.3

28 V

Die

CMPA0060002F-AMP

DC

6 GHz

2 W

17 dB

NA

28 V

Flange

CMPA0060002F1-AMP

DC

6 GHz

2 W

18 dB

NA

28 V

Flange

CMPA0060002F1

DC

6 GHz

2 W

18 dB

0.25

28 V

Flange

CMPA0060002F

DC

6 GHz

2 W

17 dB

0.23

28 V

Flange

CMPA0527005F-AMP1

1.2 GHz

1.4 GHz

5 W

20 dB

NA

50 V

Flange

CMPA0527005F

1.2 GHz

1.4 GHz

5 W

20 dB

0.47

50 V

Flange

CGH40006S-AMP1

DC

6 GHz

6 W

>11 dB

NA

28 V

Surface Mount

CGH40006P

DC

6 GHz

6 W

>11 dB

0.65

28 V

Pill

CGHV1F006S

DC

15 GHz

6 W

>7 dB

0.52

40 V

Surface Mount

CGHV1J006D-GP4

DC

18 GHz

6 W

17 dB

0.6

40 V

Die

CGH40006S

DC

6 GHz

6 W

>11 dB

0.65

28 V

Plastic

CGH60008D-GP4

DC

6 GHz

8 W

>12 dB

0.65

28 V

Die

CGH40010P

DC

6 GHz

10 W

>14 dB

0.65

28 V

Pill

CG2H40010P

DC

6 GHz

10 W

>16 dB

0.65

28 V

Pill

CG2H40010F

DC

6 GHz

10 W

>16 dB

0.65

28 V

Flange

CGH40010F

DC

6 GHz

10 W

>14 dB

0.65

28 V

Flange

PTVA030121EA-V1

0.39 GHz

0.45 GHz

12 W

25 dB

0.69

50 V

Bolt Down

CGH60015D-GP4

DC

6 GHz

15 W

>12 dB

0.65

28 V

Die

CGH27015P

DC

6 GHz

15 W

14.5 dB

0.28

28 V

Pill

CGH27015F

DC

6 GHz

15 W

14.5 dB

0.28

28 V

Flange

CGHV27015S

DC

6 GHz

15 W

21 dB

0.32

50 V

Surface Mount

CG2H80015D-GP4

DC

8 GHz

15 W

>12 dB

0.7

28 V

Die

CMPA0060025F

DC

6 GHz

25 W

17 dB

0.28

50 V

Flange

CG2H40025F

DC

6 GHz

25 W

>15 dB

0.62

28 V

Flange

CG2H40025P

DC

6 GHz

25 W

>15 dB

0.64

28 V

Pill

CMPA0060025F1-AMP

DC

6 GHz

25 W

17 dB

NA

50 V

Flange

CGHV1F025S

DC

15 GHz

25 W

11 dB

0.51

40 V

Surface Mount

PTVA120251EA-V2

0.5 GHz

1.4 GHz

25 W

18 dB

0.54

50 V

Bolt Down

CMPA0060025F1

DC

6 GHz

25 W

17 dB

0.28

50 V

Flange

CMPA0060025D

DC

6 GHz

25 W

18 dB

0.33

50 V

Die

CGH40025F

DC

6 GHz

25 W

>13 dB

0.62

28 V

Flange

CGHV1J025D-GP4

DC

18 GHz

25 W

17 dB

0.6

40 V

Die

CMPA0060025F-AMP

DC

6 GHz

25 W

17 dB

NA

50 V

Flange

CGHV27030S

DC

6 GHz

30 W

21 dB

0.32

50 V

Surface Mount

CGHV40030P

DC

6 GHz

30 W

16 dB

0.7

50 V

Pill

CGHV27030S-AMP5

1.2 GHz

1.4 GHz

30 W

21 dB

NA

50 V

Surface Mount

CG2H80030D-GP4

DC

8 GHz

30 W

16.5 dB

0.65

28 V

Die

CGH60030D-GP4

DC

6 GHz

30 W

>12 dB

0.65

28 V

Die

CGHV40030F

DC

6 GHz

30 W

16 dB

0.7

50 V

Flange

CGHV40030F-AMP2

0.5 GHz

2.7 GHz

30 W

16 dB

NA

50 V

Flange

CGH27030F-AMP

DC

6 GHz

30 W

15 dB

NA

28 V

Flange

CGH27030P

DC

6 GHz

30 W

15 dB

0.28

28 V

Pill

CGHV27030S-AMP3

1.8 GHz

2.2 GHz

30 W

21 dB

NA

28 V

Surface Mount

CGH27030S

DC

6 GHz

30 W

18 dB

0.33

28 V

Surface Mount

CGHV27030S-AMP4

1.8 GHz

2.2 GHz

30 W

21 dB

NA

50 V

Surface Mount

CGH55030P1

DC

6 GHz

30 W

10 dB

0.25

28 V

Pill

CGH27030S-AMP1

1.8 GHz

2.2 GHz

30 W

18 dB

NA

28 V

Surface Mount

CGH27030F

DC

6 GHz

30 W

15 dB

0.28

28 V

Flange

CGH55030F1

DC

6 GHz

30 W

10 dB

0.25

28 V

Flange

CG2H40035F

DC

6 GHz

35 W

14 dB

0.64

28 V

Flange

CGH40035F

DC

6 GHz

35 W

>13 dB

0.6

28 V

Flange

CG2H40035F-AMP

DC

6 GHz

35 W

14 dB

NA

28 V

Flange

CG2H40035P

DC

6 GHz

35 W

14 dB

0.64

28 V

Pill

CGHV60040D-GP4

DC

6 GHz

40 W

>7 dB

0.65

50 V

Die

CGH40045P

DC

4 GHz

45 W

>12 dB

0.55

28 V

Pill

CG2H40045F

DC

4 GHz

45 W

>14 dB

0.55

28 V

Flange

CG2H80045D-GP4

DC

8 GHz

45 W

15 dB

0.65

28 V

Die

CGH40045F

DC

4 GHz

45 W

>12 dB

0.55

28 V

Flange

CG2H40045P

DC

4 GHz

45 W

>14 dB

0.55

28 V

Pill

CGHV40050P

DC

4 GHz

50 W

16 dB

0.53

50 V

Pill

CGHV40050F-AMP

0.8 GHz

2 GHz

50 W

16 dB

NA

50 V

Flange

PTVA120501EA-V1

1.2 GHz

1.4 GHz

50 W

17 dB

0.5

50 V

Bolt Down

CGHV40050F

DC

4 GHz

50 W

16 dB

0.53

50 V

Flange

CGH27060F

DC

4 GHz

60 W

14 dB

0.27

28 V

Flange

CG2H80060D-GP4

DC

8 GHz

60 W

>12 dB

0.7

28 V

Die

CGH60060D-GP4

DC

6 GHz

60 W

>12 dB

0.65

28 V

Die

CGHV27060MP

DC

2.7 GHz

60 W

16.5 dB

0.64

50 V

Plastic

CGHV1J070D-GP4

DC

18 GHz

70 W

17 dB

0.6

40 V

Die

CGHV60075D5-GP4

DC

6 GHz

75 W

>7 dB

0.65

50 V

Die

CG2H30070F-AMP2

0.5 GHz

3 GHz

80 W

15 dB

NA

28 V

Flange

CG2H30070F

0.5 GHz

3 GHz

80 W

15 dB

0.55

28 V

Flange

CGH40090PP

DC

4 GHz

90 W

>14 dB

0.55

28 V

Push-Pull

CGH40090PP-AMP

0.5 GHz

2.5 GHz

90 W

>14 dB

NA

28 V

Push-Pull

CGHV40100P-AMP

0.5 GHz

2.5 GHz

100 W

17.5 dB

NA

50 V

Pill

CGHV40100P

DC

3 GHz

100 W

17.5 dB

0.55

50 V

Pill

CGHV40100F-AMP

0.5 GHz

2.5 GHz

100 W

17.5 dB

NA

50 V

Flange

CGHV40100F

DC

3 GHz

100 W

17.5 dB

0.55

50 V

Flange

CG2H80120D-GP4

DC

8 GHz

120 W

>12 dB

0.65

28 V

Die

CGH60120D-GP4

DC

6 GHz

120 W

>12 dB

0.65

28 V

Die

CGH21120F

1.8 GHz

2.3 GHz

120 W

15 dB

0.35

28 V

Flange

CGH09120F

DC

2.5 GHz

120 W

21 dB

0.35

28 V

Flange

CGH21120F-AMP

1.8 GHz

2.1 GHz

120 W

15 dB

NA

28 V

Flange

CGH40120F-AMP

1.2 GHz

1.4 GHz

120 W

>15 dB

NA

28 V

Flange

CGH40120F

DC

3 GHz

120 W

>15 dB

0.7

28 V

Flange

CGH40120P

DC

3 GHz

120 W

>15 dB

0.7

28 V

Pill

CGHV60170D-GP4

DC

6 GHz

170 W

>7 dB

0.65

50 V

Die

CGH40180PP-AMP

1.1 GHz

1.3 GHz

180 W

>15 dB

NA

28 V

Push-Pull

CGH40180PP

DC

3 GHz

180 W

>15 dB

0.7

28 V

Push-Pull

CGHV40180F

DC

2 GHz

200 W

24 dB

0.7

28 V / 50 V

Flange

CGHV40180P

DC

2 GHz

200 W

24 dB

0.7

28 V / 50 V

Pill

PTVA102001EA-V1

0.96 GHz

1.6 GHz

200 W

18.5 dB

0.6

50 V

Bolt Down

CGHV40180F-AMP3

0.96 GHz

1.25 GHz

200 W

24 dB

NA

28 V / 50 V

Flange

CGH21240F-AMP

1.8 GHz

2.1 GHz

240 W

15 dB

NA

28 V

Flange

CGH21240F

1.8 GHz

2.3 GHz

240 W

15 dB

0.33

28 V

Flange

CGHV40200PP

DC

3 GHz

250 W

21 dB

0.75

50 V

Push-Pull

PTVA042502FC-V1

0.47 GHz

0.806 GHz

250 W

19 dB

0.26

50 V

Earless

CGHV14250F-AMP

DC

1.6 GHz

250 W

18 dB

NA


Flange

CGHV40200PP-AMP

1.7 GHz

1.9 GHz

250 W

21 dB

NA

50 V

Push-Pull

PTVA042502EC-V1

0.47 GHz

0.806 GHz

250 W

19 dB

0.26

50 V

Bolt Down

CGHV14250P

DC

1.6 GHz

250 W

18 dB

0.77


Pill

CGHV14250F

DC

1.6 GHz

250 W

18 dB

0.77

50 V

Flange

CGHV40320D-GP4

DC

4 GHz

320 W

19 dB

0.65

50 V

Die

GTVA123501FA-V1

1.2 GHz

1.4 GHz

350 W

18 dB

0.71

50 V

Earless

PTVA123501EC-V2

1.2 GHz

1.4 GHz

350 W

17 dB

0.55

50 V

Bolt Down

PTVA123501FC-V1

1.2 GHz

1.4 GHz

350 W

17 dB

0.55

50 V

Earless

PTVA043502EC-V1

DC

1.35 GHz

350 W

18 dB

0.3

50 V

Bolt Down

PTVA043502FC-V1

DC

1.35 GHz

350 W

18 dB

0.3

50 V

Earless

GTVA104001FA-V1

0.96 GHz

1.215 GHz

400 W

19 dB

0.7

50 V

Earless

PTVA104501EH-V1

0.96 GHz

1.215 GHz

450 W

17.5 dB

0.58

50 V

Bolt Down

PTVA035002EV-V1

0.39 GHz

0.45 GHz

450 W

18 dB

0.64

50 V

Bolt Down

CGHV14500F-AMP

1.2 GHz

1.4 GHz

500 W

16 dB

NA


Flange

CGHV14500F

1.2 GHz

1.4 GHz

500 W

16 dB

0.68

50 V

Flange

CGHV14500P

1.2 GHz

1.4 GHz

500 W

16 dB

0.68


Pill

GTVA126001EC-V1

1.2 GHz

1.4 GHz

600 W

20 dB

0.63

50 V

Bolt Down

GTVA126001FC-V1

1.2 GHz

1.4 GHz

600 W

20 dB

0.63

50 V

Earless

GTVA107001EFC-V1

0.96 GHz

1.215 GHz

700 W

20 dB

0.7

50 V

Bolt Down

GTVA107001EC-V1

0.96 GHz

1.215 GHz

700 W

20 dB

0.7

50 V

Bolt Down

PTVA127002EV-V1

1.2 GHz

1.4 GHz

700 W

16 dB

0.56

50 V

Surface Mount

PTVA047002EV-V1

0.47 GHz

0.806 GHz

700 W

17.5 dB

0.29

50 V

Bolt Down

GTVA107001FC-V1

0.96 GHz

1.215 GHz

700 W

20 dB

0.7

50 V

Earless

CGHV14800F

1.2 GHz

1.4 GHz

800 W

16 dB

0.65

50 V

Flange

CGHV14800P

1.2 GHz

1.4 GHz

800 W

16 dB

0.65


Pill

CGHV14800F-AMP

1.2 GHz

1.4 GHz

800 W

16 dB

NA


Flange

PTVA101K02EV-V1

1.03 GHz

1.09 GHz

900 W

18 dB

0.65

50 V

Bolt Down

GTVA101K42EV-V1

0.96 GHz

1.4 GHz

1400 W

17 dB

0.68

50 V

Bolt Down

LTN/GTVA101K42EV-V1

0.96 GHz

1.4 GHz

1400 W

17 dB

0.68

50 V

Bolt Down
