MACOM射频功率晶体管-硅MOSFET
发布时间：2020-10-21 15:01:42 浏览：1779

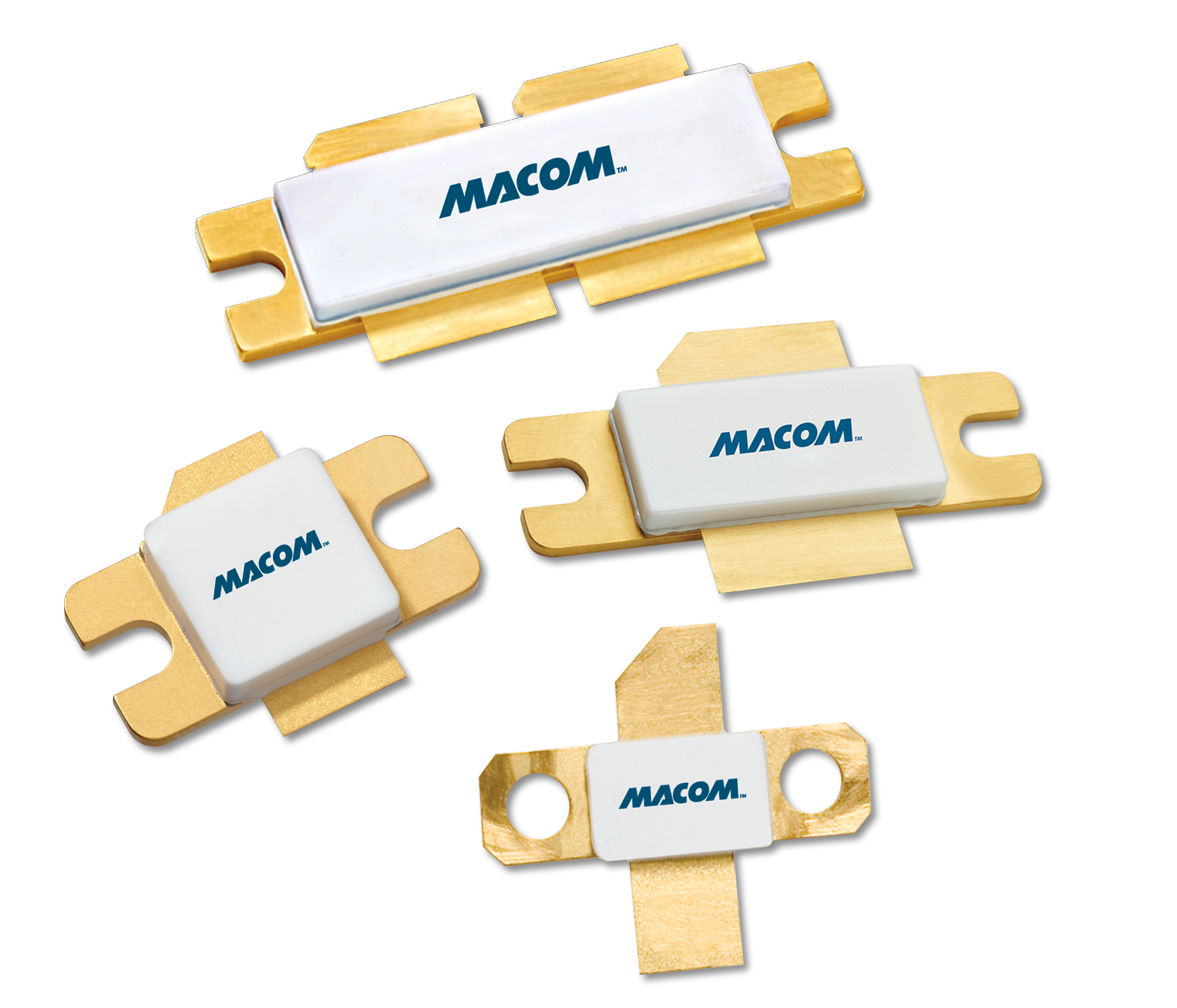

MACOM提供广泛的TMOS和DMOS射频功率场效应晶体管产品，这些产品是从DC到1.0GHz的分立器件。MACOM的大功率MOSFET晶体管非常适合民用航空电子、通信、网络、雷达、工业、科学和医疗应用。
MACOM的金属化制造工艺确保了高性能和长期可靠性。MACOM的场效应晶体管旨在为客户的苛刻应用提供可靠的解决方案。
深圳立维创展科技是MACOM的代理商，产品提供MACOM可变增益放大器、功率放大器、低噪声放大器、线性放大器、混合放大器、FTTx放大器、分布式放大器、放大器增益模块、有源分离器、功分器、倍频器、混合混频器、混频器、上变频器、数字衰减器、数字移相器、功率测试仪。压控衰减器等半导体，进口，质量保证，欢迎咨询。
详情了解MACOM产品请点击：http://www.leadwaytk.com/brand/5.html
或联系我们的销售工程师：0755-83050846 QQ: 3312069749
Part Number | Min Frequency (MHz) | Max Frequency (MHz) | Pout (W) | Gain (dB) | Efficiency (%) | Package |
MRF176GU | 5 | 400 | 150 | 12 | 45 | Flange Ceramic Pkg |
MRF151A | 5 | 175 | 150 | 13 | 40 | Flange Ceramic Pkg |
DU2880V | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
DU2860T | 2 | 175 | 60 | 13 | 60 | Flange Ceramic Pkg |
MRF175LU | 5 | 400 | 100 | 8 | 50 | Flange Ceramic Pkg |
MRF176GV | 5 | 225 | 200 | 15 | 50 | Flange Ceramic Pkg |
MRF140 | 5 | 150 | 150 | 15 | 40 | Flange Ceramic Pkg |
MRF175GU | 5 | 400 | 150 | 12 | 55 | Flange Ceramic Pkg |
MRF141 | 5 | 175 | 150 | 18 | 40 | Flange Ceramic Pkg |
MRF173CQ | 5 | 175 | 80 | 11 | 55 | Flange Ceramic Pkg |
MRF136Y | 5 | 400 | 30 | 12 | 50 | Flange Ceramic Pkg |
MRF148A | 5 | 175 | 30 | 18 | 40 | Flange Ceramic Pkg |
MRF158 | 5 | 500 | 2 | 16 | 55 | Flange Ceramic Pkg |
MRF174 | 5 | 200 | 125 | 9 | 50 | Flange Ceramic Pkg |
MRF175GV | 5 | 225 | 200 | 14 | 65 | Flange Ceramic Pkg |
MRF177 | 5 | 400 | 100 | 12 | 60 | Flange Ceramic Pkg |
MRF173 | 5 | 175 | 80 | 11 | 55 | Flange Ceramic Pkg |
MRF134 | 5 | 400 | 5 | 11 | 50 | Flange Ceramic Pkg |
MRF166C | 5 | 500 | 20 | 13.5 | 50 | Flange Ceramic Pkg |
MRF166W | 30 | 500 | 40 | 14 | 50 | Flange Ceramic Pkg |
MRF151 | 5 | 175 | 150 | 13 | 40 | Flange Ceramic Pkg |
MRF137 | 5 | 400 | 30 | 13 | 60 | Flange Ceramic Pkg |
MRF150 | 5 | 150 | 150 | 17 | 45 | Flange Ceramic Pkg |
MRF171A | 100 | 200 | 45 | 17 | 60 | Flange Ceramic Pkg |
MRF275G | 100 | 500 | 150 | 10 | 50 | Flange Ceramic Pkg |
MRF160 | 30 | 500 | 4 | 16 | 55 | Flange Ceramic Pkg |
MRF151G | 5 | 175 | 300 | 14 | 50 | Flange Ceramic Pkg |
MRF154 | 2 | 100 | 600 | 17 | 45 | Flange Ceramic Pkg |
MRF157 | 5 | 80 | 600 | 21 | 45 | Flange Ceramic Pkg |
MRF275L | 5 | 500 | 100 | 8.8 | 55 | Flange Ceramic Pkg |
DU28120T | 2 | 175 | 120 | 13 | 60 | Flange Ceramic Pkg |
MRF136 | 5 | 400 | 15 | 13 | 50 | Flange Ceramic Pkg |
UF28100H | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
DU2880U | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
DU1215S | 2 | 175 | 15 | 9.5 | 60 | Flange Ceramic Pkg |
PH3135-65M | 3100 | 3500 | 65 | 7.5 | 35 | Flange Ceramic Pkg |
DU2810S | 2 | 175 | 10 | 13 | 55 | Flange Ceramic Pkg |
DU2880T | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
LF2805A | 500 | 1000 | 5 | 10 | 50 | Flange Ceramic Pkg |
UF2815B | 100 | 500 | 15 | 10 | 50 | Flange Ceramic Pkg |
DU28120V | 2 | 175 | 120 | 13 | 60 | Flange Ceramic Pkg |
UF2805B | 100 | 500 | 5 | 10 | 50 | Flange Ceramic Pkg |
UF2840P | 100 | 500 | 40 | 10 | 50 | Flange Ceramic Pkg |
DU2805S | 2 | 175 | 5 | 11 | 55 | Flange Ceramic Pkg |
DU2820S | 2 | 175 | 20 | 13 | 60 | Flange Ceramic Pkg |
DU28200M | 2 | 175 | 200 | 13 | 55 | Flange Ceramic Pkg |
UF2810P | 100 | 500 | 10 | 10 | 50 | Flange Ceramic Pkg |
UF2820P | 100 | 500 | 20 | 10 | 50 | Flange Ceramic Pkg |
UF28100M | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
UF28100V | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
UF2840G | 100 | 500 | 40 | 10 | 50 | Flange Ceramic Pkg |
DU2860U | 2 | 175 | 60 | 13 | 60 | Flange Ceramic Pkg |
UF28150J | 100 | 500 | 150 | 8 | 55 | Flange Ceramic Pkg |
DU2840S | 2 | 175 | 40 | 13 | 60 | Flange Ceramic Pkg |
